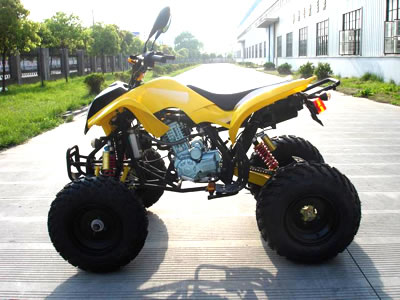

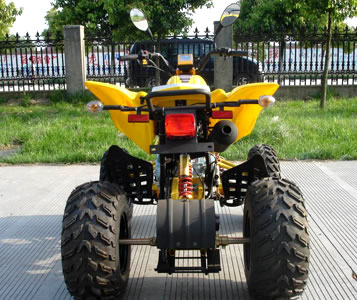

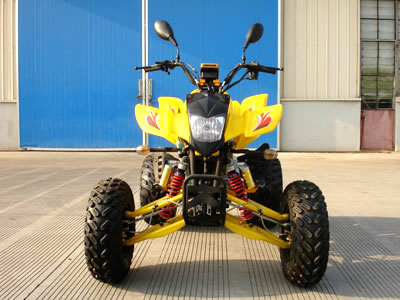

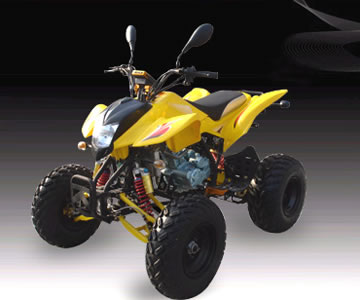

SK250ER-D ATV Quads

Products Visitors:723


Description of SK250ER-D ATV Quads:
Being economical, efficient and reliable, the SK250ER-D ATV/quad is a unique solution designed by Jonway. In addition, it is very easy to use and maintain.
Features of SK250ER-D ATV Quads:
- Elegant style
- Excellent fuel economy
- Single-cylinder, 4-stroke engine
- Drum/Disc brakes front & rear
- Electric starter
- Approve mode: EPC, EPA, EEC
- 6 months warranty for electric parts, one year or 8000km warranty for others.
Technical Specification of SK250ER-D ATV Quads:
      EEC NO.:e9*2002/24*0134*01     EEC NO.:e9*2002/24*0134*00
MODEL     SK250ER-D     SK200ER-D
ITEM     DESCRIPTION     DESCRIPTION
Engine type     Single cylinder,4-stroke,water-cooling     Single cylinder,4-stroke,water-cooling
Displacement(ml)     249.6     197
Max power (kw/r/min)     15/(7500±5%)     11.0/(7500±5%)
Max torque ((n.m/r/min)     18/(5,500±5% )     14.2/(6000±5%)
Compression ratio     10.5:1     9.2:1
Bore and stroke(mm x mm)     67*65     63.5*62.2
Ignition method     CDI     CDI
Starting method     Electric     Electric
Clutch method     Hand clutch     Hand clutch
Gearshift method     5 speed, inside reverse     5 speed, inside reverse
Max speed(km/h)     ≥85     ≥75
Transmission     Chain drive     Chain drive
Brake     Front disc/rear disc     Front disc/rear disc,
Climbing ability     ≥25°     ≥25°
Number of swing arm     Double swing arm     Double swing arm
Front tire/rear tire     21x7-10/22x10-10      21x7-10/22x10-10
Net weight(kg)     155     145
Overall dimension(mm)     1800x1120x1130     1800x1120x1130
20GP     21PCS     21PCS
40HQ     45PCS     45PCS
Carton size     1510*1050*790MM     1510*1050*790MM
