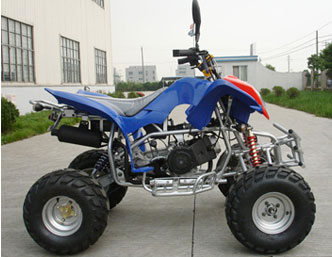

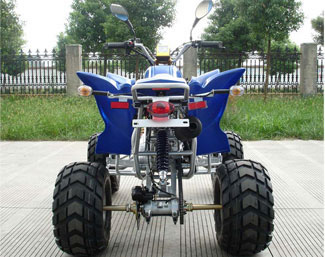

    SK150 ATV Quads-1E

    Products Visitors:3636


    Description of SK150 ATV Quads:
    Easy to ride as it is to maintain, this SK150 ATV/Quads features high durability, reliability and maneuverability. It appeals to riders who are looking for an ATV that costs less.
    Technical Specification of SK150 ATV Quads:
    EEC NO.:e1*2002/24*0389*00
    Colors available     Red, blue, yellow, black
    Assembly required     Hand bar, front/rear wheel, bumper, front panel
    Engine type:     CVT
    Engine brand:     *
    Displacement     149.6ml
    Cooling     Air cooled
    Max horsepower     7.0KW/7500rpm
    Max torque     8.3n.m/6000rpm
    Bore*stroke     2.26*2.28 inches
    Max speed     31.06 miles/h
    Climbing ability     35 degrees
    Ignition     C.D.I
    Starting system     Electric
    Battery     12V/7Ah
    Carburetor brand     PZ30
    Engine oil     SAE15W/40SF
    Gear oil     *
    Clutch     Automatic
    Transmission     1-speed+reverse
    Driveline     Chain-drive
    Driving wheel     Rear wheel drive
    Suspension, front/rear     Double a-arm/single a-arm
    Brakes, front/rear     Disc/disc
    Brake operation     foot
    Tires, front/rear     19*7.0-8/18*9.5-8
    Fuel capacity/type     1.06gal
    Weight, G.W./N.W     385/341lbs
    Max. load     220.5lbs
    Wheelbase     44.1 inches
    OA L*W*H     66.9*39.4*41.7 inches
    Height to seat     29.1 inches
    Min ground clearance     6.3 inches
    Carton size     1470*870*860mm
    Shipping info     63pcs/40\'HQ
