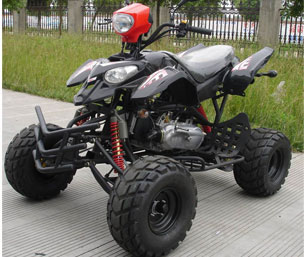

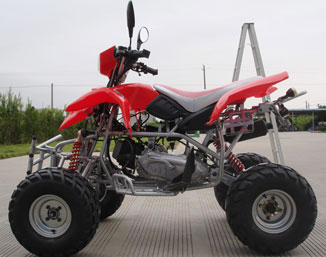

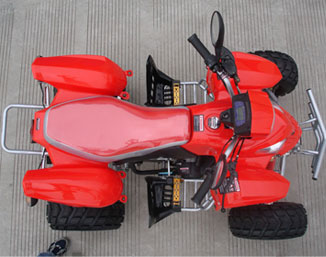

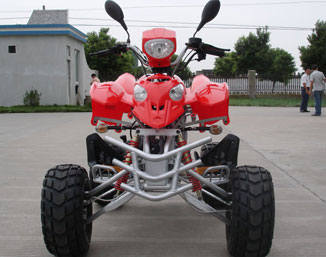

Description of SK150 ATV Quads:
SK150 ATV/quads is a new model. We build this ATV with the power, comfort and versatility to go the place you want.
Features of SK150 ATV Quads:
- Compact size
-Updated design
- Disc brakes front & rear
- Electric starter
- Automatic clutch
- Approve mode: EPC, EPA, EEC
- 6 months warranty for electric parts, one year or 8000km warranty for others.
Technical Specification of SK150 ATV Quads:
EEC NO.:e1*2002/24*0389*00
Colors available     Red, blue, yellow, black
Assembly required     Hand bar, front/rear wheel, bumper, Front panel
Engine type:     CVT
Engine brand:     *
Displacement     149.6ml
Cooling     Air cooled
Max horsepower     7.0KW/7500rpm
Max torque     8.3n.m/6000rpm
Bore*stroke     2.26*2.28 inches
Max speed     31.06 miles/h
Climbing ability     35 degrees
Ignition     C.D.I
Starting system     Electric
Battery     12V/7Ah
Carburetor brand     PZ30
Engine oil     SAE15W/40SF
Gear oil     *
Clutch     Automatic
Transmission     1-speed+reverse
Driveline     Chain-drive
Driving wheel     Rear wheel drive
Suspension, front/rear     Double a-arm/single a-arm
Brakes, front/rear     Disc/disc
Brake operation     foot
Tires, front/rear     19*7.0-8/18*9.5-8
Fuel capacity/type     1.06gal
Weight, G.W./N.W     385/341lbs
Max. load     220.5lbs
Wheelbase     44.1 inches
OA L*W*H     66.9*39.4*41.7 inches
Height to seat     29.1 inches
Min ground clearance     6.3 inches
Carton size     1470*870*860mm
Shipping info     63pcs/40\'HQ
