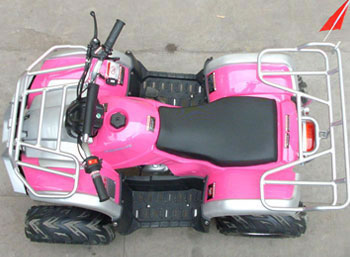

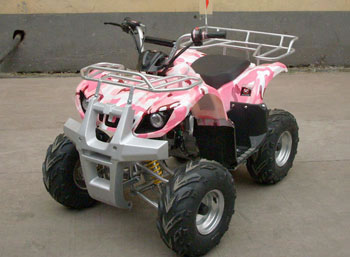

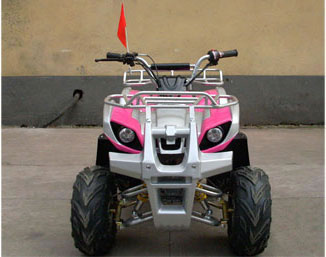

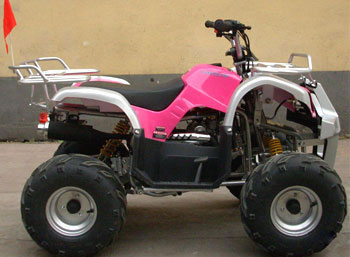

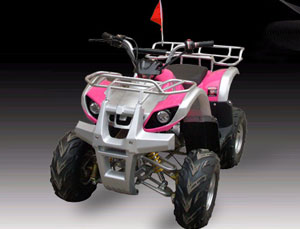

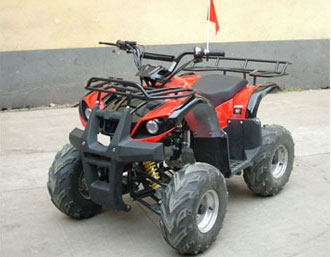

    SK110 ATV Quads-2

    Products Visitors:2707


    Description of SK110 ATV Quads:
    If you need a vehicle that will go up, over, and through anything in its path, SK110 ATV/quads is a good choice for you. Narrow with excellent traction for its lightweight, this ATV will get you into places you never believe.

    Features of SK110 ATV Quads:
    - Light weight
    - Single-cylinder, 4-stroke engine
    - Drum/Disc brakes front & rear
    - Electric starter
    - Automatic clutch
    - Approve mode: EPC, EPA, EEC
    - 6 months warranty for electric parts, one year or 8000km warranty for others.
    Technical Specification of SK110 ATV Quads:
    CONFIGURE
    Colors available     *
    Features     *
    Decals (Y/N)     Y
    Tool kit (Y/N)     Y
    Remote start (Y/N)     N
    Remote engine stop (Y/N)     N
    Remote alarm (Y/N)     N
    Speed limiter (Y/N)     Y
    Assembly required     *
    ENGINE INFO

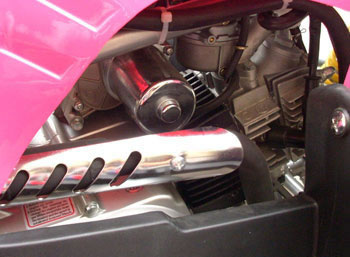

    Engine type     Single cylinder ,4-stroke
    Engine brand     *
    Displacement     110cc
    Cooling     Air cooled
    Max horsepower     7.3hp/7500rpm
    Max torque     6.5n.m/5500rpm
    Bore*stroke     2.1*2.0 inches
    Max speed     31mile/h
    Climbing ability     12 degree
    Ignition     C.D.I
    Starting system     Electric
    Battery     12V3Ah
    Carburetor brand     PZ19
    Engine oil     SAE15W/40SF
    Gear oil     *

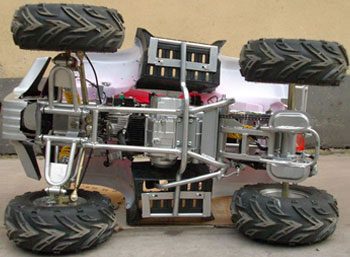

    CHASSIS ETC
    Clutch     Automatic
    Transmission     *
    Driveline     Chain-drive
    Driving wheel     Rear wheel drive

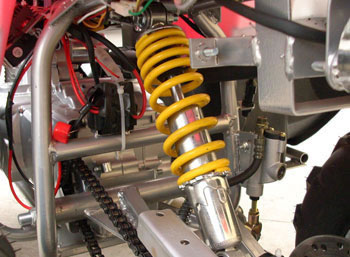

    Suspension, front/rear     Double a-arm/single a-arm

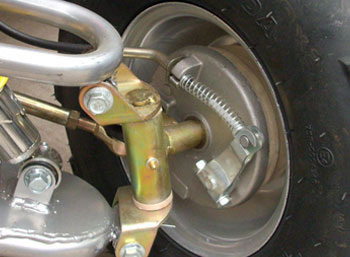

    Brakes, front/rear     Drum/disc
    Brake operation     Hand+foot
    Tires, front/rear     16*8-7
    Fuel capacity/type     0.5 gal
    Weight, G.W./N.W     216/251.3 lbs
    Max load     220.5 lbs
    DIMENSIONS
    Wheelbase     31.5inches
    OA L*W*H     57.5*39.8*38.6 inches
    Height to seat     26.2 inches
    Min ground clearance     9.1inches
    Carton size     51.2*30.3*26.4inches
    Shipping info     108pcs/40HQ
