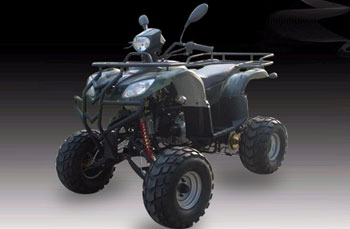

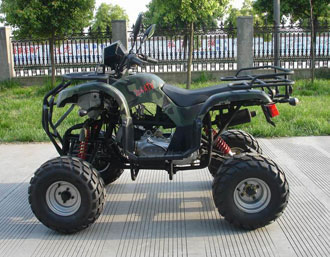

    SK150 ATV Quads-2E

    Products Visitors:5016


    Description of SK150 ATV Quads:
    The SK150 ATV Quad-2E offers outstanding low cost motoring with enough power on hand to have some fun. With a top speed of around 60km/h, you can keep up with today's traffic. You will be pleased with this ATV/quads' fuel consumption too !
    Technical Specification of SK150 ATV Quads:
    EEC NO.:e1*2002/24*0389*00
    Specifications/ Configure
    Colors available     Maple camouflage, camo green, red, blue, black
    Assembly required     Tire, handle bar, fr/rr bumper, front shock, front Disc, decorative cover, steering handle
    Engine type:     4-Stroke, single cylinder
    Engine brand     157QMJ
    Displacement     149.6ml
    Cooling     Air-cooled
    Max horsepower     7.0kw/7500rpm
    Max torque     8.3n.m/6000r/min
    Bore*stroke:     2.26*2.28 inches
    Max speed     60km/h
    Climbing ability     15degree
    Ignition:     C.D.I
    Starting system     Electric + kick start
    Battery     12V/7Ah
    Carburetor brand     PZ30
    Engine oil     15W/40SF
    Gear oil     15W/40SF
    Clutch     Automatic
    Transmission     1-speed+reverse
    Driveline     Chain
    Driving wheel:     Rear wheel force
    Suspension, front/rear     Double arm-swing/arm-swing
    Brakes, front/rear:     Disc/disc
    Brake operation:     foot
    Tires, front/rear:     19.0*7.0-8/18*9.50-8
    Fuel capacity/type:     1.06gal
    Weight, G.W./N.W     418.9lbs / 392.4lbs
    OA L*W*H     68.5*43.3*46.7 inches
    Height to seat:     850mm
    Min ground clearance     3.94 inches
    Carton size     1470*870*860mm
    Shipping info.:     63/40\' HQ
