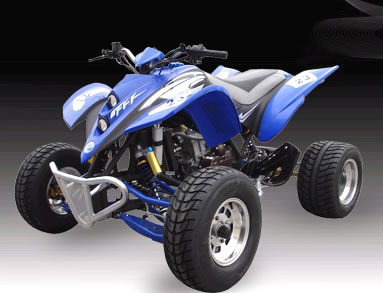

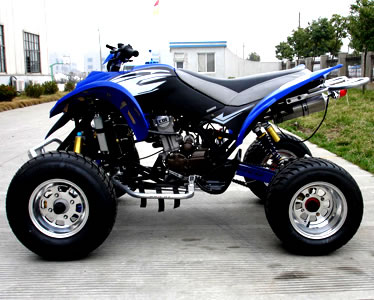

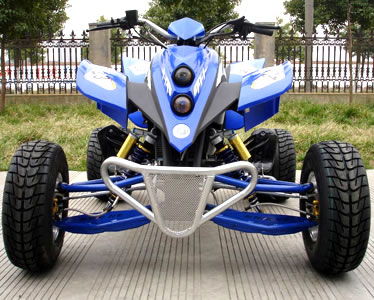

    SK250 ATV Quads-5

    Products Visitors:3746


     Description of SK250 ATV Quads:
    This ATV/quad is convenient and simple for maintenance. Hydraulic brakes ensure that every ride is safe and worry free. Durability of body and long life of power unit allow you to operate SK250 ATV quad in course of many years.
    Features of SK250 ATV Quads:
    - Innovative design
    - Single-cylinder, 4-stroke engine
    - Hydraulic disc brakes front & rear
    - Electric starter
    - Manuel clutch
    - Approve mode: EPC, EPA, EEC
    - 6 months warranty for electric parts, one year or 8000km warranty for others.
    Technical Specification of SK250 ATV Quads-5

    Engine: 250cc, 167MM, single-cylinder, four stroke, water-cooled
    Dimension (inch):71.6*53.5*38.2
    Displacement(ml): 229.2
    Ignition: C.D.I.
    Clutch: Manual
    Wheelbase(inch): 47.2
    Drive type: Chain drive
    Front Tire/Rear Tire: 165/70-10 /225/40-10
    Seat high(inch):28.7
    Fuel Cap Height(inch):34.2
    Dry Weight(lb):396.8
    Rating Load(lb):264.5
    Min. Ground clearance (inch):4.3
    Min Chassis Ground clearance(inch):7.5
    Max. power (KW/R/Min):12.5/6500
    Start-up system: Electric
    Front / Rear Brakes: Hydraulic disk/ Hydraulic disk brake
    Tread(front/rear)46.8/29.7inch
    Max speed:52.78mile/h
    Fuel capacity:11.5L
    Min Turn Round Diameter(mm):224.4inch
    Rear Swing Arm Angle: 7°
    Front Swing Arm Angel: 11°
    Shipping info:42pcs/40'HQ
