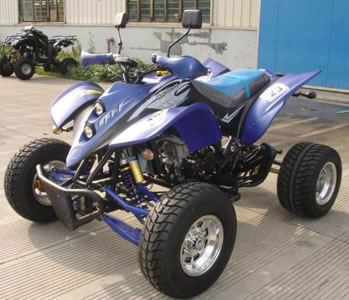

    SK250 ATV Quads-5E

    Products Visitors:2183


    Description of SK250 ATV Quads:
    With a unique design, our SK250 ATV/Quads are very durable. Several colors are available. Enjoy your trail with it !
    Technical Specification of SK250 ATV Quads:
    EEC NO.:e9*2002/24*0284*00
    Engine     250cc,167MM,single-cylinder, four stroke, water-cooled     200cc,167MM,single-cylinder, four stroke, water-cooled
    Dimension (inch)     71.6*53.5*38.2     71.6*53.5*38.2
    Displacement(ml)     229.2     197
    Ignition      C.D.I.      C.D.I.
    Clutch      Manual      Manual
     Wheelbase(inch)     47.2     47.2
     Drive type     Chain drive     Chain drive
     Front Tire/Rear Tire      165/70-10  /225/40-10      165/70-10  /225/40-10
     Seat high(inch)     28.7     28.7
    Fuel Cap Height(inch)     34.2     34.2
    Dry Weight(lb)     396.8     396.8
    Rating Load(lb)     264.5     264.5
    Min. Ground clearance (inch)     4.3     4.3
    Min Chassis Ground clearance(inch)     7.5     7.5
    Max. power (KW/R/Min)     12.5/6500     12/7000
    Start-up system     Electric     Electric

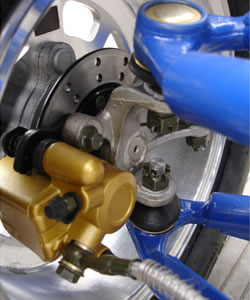

      Front / Rear Brakes     Hydraulic disk/ Hydraulic disk brake     Hydraulic disk/ Hydraulic disk brake
      Tread(front/rear)     46.8/29.7inch     46.8/29.7inch
    Max speed     52.78mile/h     43.5mile/h
    Fuel capacity     11.5L     11.5L
    Min Turn Round Diameter(mm)     224.4inch     224.4inch
    Rear Swing Arm Angle     7°     7°
    Front Swing Arm Angel     11°     11°
    Shipping info:4     42pcs/40\'HQ     42pcs/40\'HQ
    Carton size     1700*1150*860MM     1700*1150*860MM
