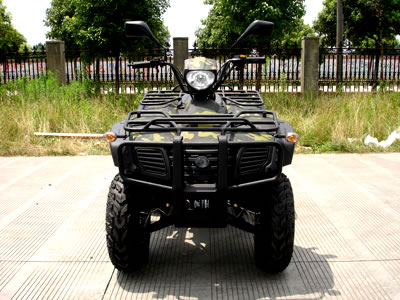

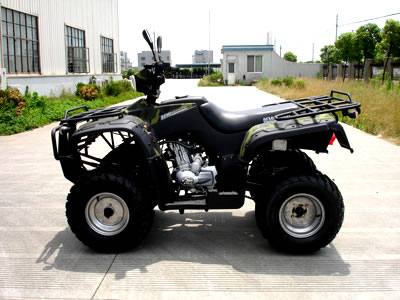

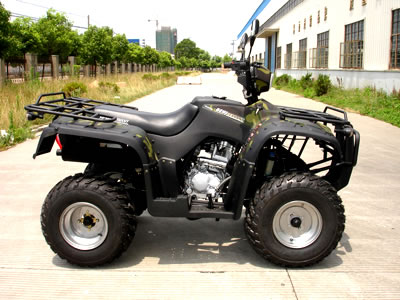

    SK250 ATV Quads-2AE

    Products Visitors:2630
    Description of SK250 ATV Quads:
    It is our newly designed ATV/quads, which is one of the economical models. With our ATV/quads, you will feel that nothing could be easier for simply go around.

    Features of SK250 ATV Quads :
    - Innovative design
    - Easy to handle
    - Optional colors
    - Electric starter
    - Approve mode: EPC, EPA, EEC
    - 6 months warranty for electric parts, one year or 8000km warranty for others.SK250
    Technical Specification of SK250 ATV Quads:
    Colors available     Red,blue,yellow,black,Maplue camo\'Army green camouflage
    Engine type     CG  250     CG  200
    Engine brand     ZONGSHENG     LONGCIN
    Displacement     250cc     200cc
    Cooling     Water cooled     Water cooled
    Max horsepower     12.5 kW /6750(r/min)     14HP/6750(r/min)
    Max torque     19.3N•m/5250(r/min)     15.5N•m/6500(r/min)
    Bore*stroke     67X65 (mm)     2.5*2.44IN
    Max speed     80km/h     46.6MILE/H
    Climbing ability     20degree     20degree
    Ignition     C.D.I     C.D.I
    Starting system     Electric     Electric
    Battery     12V9Ah     12V9Ah
    Carburetor brand     PZ30     PZ30
    Engine oil     SAE15W/40SF     SAE15W/40SF
    Clutch     Manual     Manual
    Transmission     4-speed+reverse     4-speed+reverse
