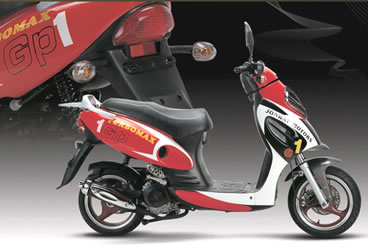

    YY50QT-21 Motor Scooter

    Products Visitors:4328


    Description of YY50QT-21 Motor Scooter:
    This 50cc motor scooter is light, agile and compact in size. This electric scooter can make your driving fun, easy and economic.
    Features of YY50QT-21 Motor Scooter:
    - External size: 1810*725*1050mm
    - Wheel base: 1302mm
    - Single-cylinder air-cooled engine
    - Fuel capacity: 4.20L
    - Brake type: F/R: Disk/Drum
    - Starting system: Electric/Kick
    - Approve mode: EPC, EPA, EEC
    - 6 months warranty for electric parts, one year or 8000km warranty for others
    Technical Specification of YY50QT-21 Motor Scooter:
    YY50QT-21(2 Stroke)
    Dry weight: 90kg
    Wheel base: 1302mm
    Exterior size: 1810*725*1050mm
    Maximum speed: 70km/h
    Maximum payload mass: 70kg
    Fuel capacity: 4.20L
    Brake type: F/R: Disk/Drum
    Engine type: 2 stroke, single cylinder, air cool
    Maximum power: 3.0kw/8000r/min
    Starting system: Electric/Kick
    Tyre size: 120/70-12; 130/70-12
    Battery voltage: 12V/7AH

    YY50QT-21(4 Stroke)
    Dry weight: 90kg
    Wheel base: 1302mm
    Exterior size: 1810*725*1050mm
    Maximum speed: 55km/h
    Maximum payload mass: 70kg
    Fuel capacity: 4.20L
    Brake type: F/R: Disk/Drum
    Engine type: 4 stroke, single cylinder, air cool
    Maximum power: 2.20kw/8000r/min
    Starting system: Electric/Kick
    Tyre size: 120/70-12; 130/70-12
    Battery voltage: 12V/7AH
    YY125QT-21
    Dry weight: 125kg
    Wheel base: 1302mm
    Exterior size: 1810*725*1050mm
    Maximum speed: 95km/h
    Maximum payload mass: 140kg
    Fuel capacity: 4.20L
    Brake type: F/R: Disk/Drum
    Engine type: 4 stroke, single cylinder, air cool
    Maximum power: 5.85kw/8500r/min
    Starting system: Electric/Kick
    Tyre size: 4.00-12; 4.00-12
    Battery voltage: 12V/7AH
