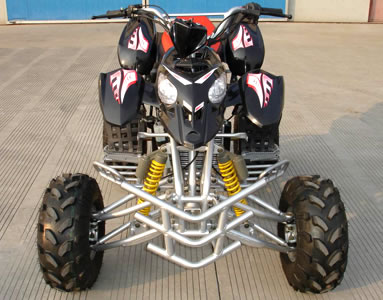

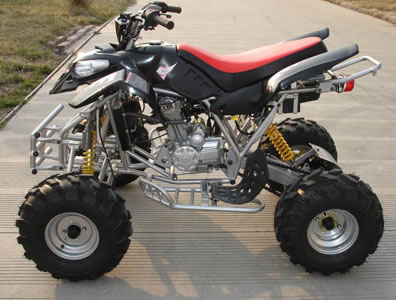

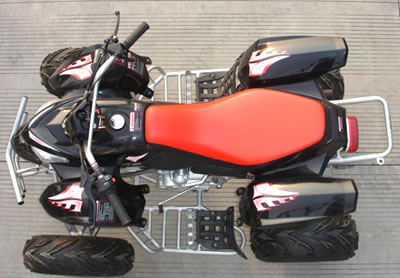

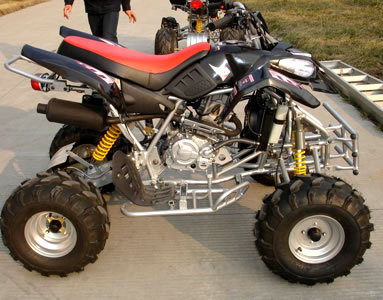

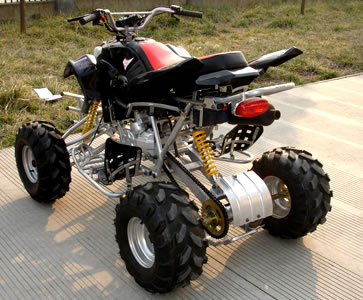

    SK250 ATV Quads-3

    Products Visitors:4070


     Description of SK250 ATV Quads:
    This SK250 ATV/ Quad is designed to further suit the leisure needs. The extended seat offers more comforts for riders. It will never disappoint its riders in all work and leisure situations.
    Features of SK250 ATV Quads:
    - A variety of colors
    - Modern design
    - Water-cooled engine
    - Drum/Disc brakes front & rear
    - Electric starter
    - Approve mode: EPC, EPA, EEC
    - 6 months warranty for electric parts, one year or 8000km warranty for others.
    Technical Specification of SK250 ATV Quads:
    SPECIFICATIONS / CONFIGURE
    Colors available     Red, blue, yellow, black
    ENGINE INFO
    Engine type     CG
    Engine brand     LONGCIN
    Displacement     250cc
    Cooling     Water cooled
    Max horsepower     16hp/7500rpm
    Max torque     19.3n.m/6500rpm
    Bore*stroke     2.6*2.5inches
    Max speed     49.6mile/h
    Climbing ability     20degree
    Ignition     C.D.I
    Starting system     Electric
    Battery     12V9Ah
    Carburetor brand     PZ30
    Engine oil     SAE15W/40SF
    CHASSIS ETC
    Clutch     Manual
    Transmission     4-speed+reverse
    Driveline     Chain-drive
    Driving wheel     Rear wheel drive
    Suspension, front/rear     Double a-arm/single a-arm
    Brakes, front/rear     Drum/disc
    Brake operation     Hand/foot
    Tires, front/rear     19*7-8      18*9.5-8
    Fuel capacity/type     1.1gal
    Weight, G.W./N.W     418.8/374.7lbs
    Max load     330.7lbs
    DIMENSIONS
    Wheelbase     32.28inches
    OA L*W*H     70.2*27.1*46.2inches
    Height to seat     34.2inches
    Min ground clearance     4.3inches
    Carton size     57.87*34.*33inch1470*870*860MM/
    Shipping info     29pcs/20GP, 63pcs/40HQ
