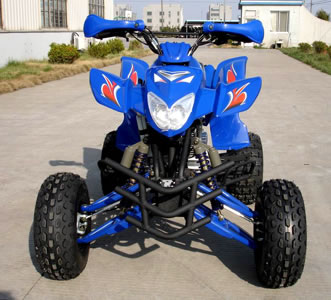

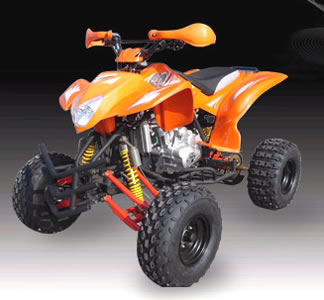

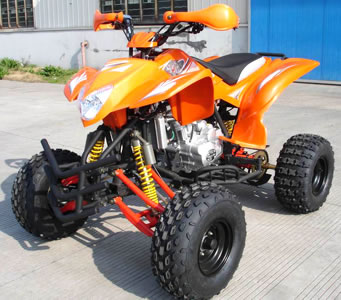

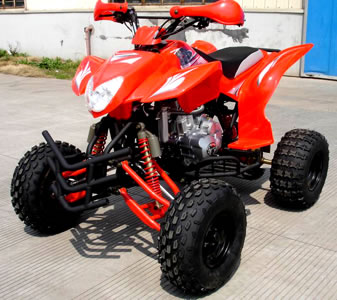

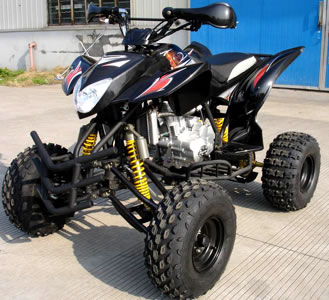

    SK250 ATV Quads-1

    Products Visitors:3842



    Description of SK250 ATV Quads:
    SK250 ATV/quad offers crafted design and compact structure. With its disk & drum brakes, it is very easy to handle. The high brightness of the headlight provides excellent visibility for you.
    Features of SK250 ATV Quads:
    - Optional color choices
    - Water-cooled engine
    - Drum/Disc brakes front & rear
    - Electric starter
    - Approve mode: EPC, EPA, EEC
    - 6 months warranty for electric parts, one year or 8000km warranty for others.
    Technical Specification of SK250 ATV Quads:

    SPECIFICATIONS / CONFIGURE
    Colors available Red, blue, yellow, black
    ENGINE INFO ??
    Engine type CG
    Engine brand LONGCIN
    Displacement 250cc
    Cooling Water cooled
    Max horsepower 16hp/7500rpm
    Max torque 19.3n.m/6500rpm
    Bore*stroke 2.6*2.5inches
    Max speed 49.6mile/h
    Climbing ability 20degree
    Ignition C.D.I
    Starting system Electric
    Battery 12V9Ah
    Carburetor brand PZ30
    Engine oil SAE15W/40SF
    CHASSIS ETC ??
    Clutch Manual
    Transmission 4-speed+reverse
    Driveline Chain-drive
    Driving wheel Rear wheel drive
    Suspension, front/rear Double a-arm/single a-arm
    Brakes, front/rear Drum/disc
    Brake operation Hand/foot
    Tires, front/rear 19*7-8      18*9.5-8
    Fuel capacity/type 1.1gal
    Weight, G.W./N.W 418.8/374.7lbs
    Max load 330.7lbs
    DIMENSIONS ??
    Wheelbase 32.28inches
    OA L*W*H 70.2*27.1*46.2inches
    Height to seat 34.2inches
    Min ground clearance 4.3inches
    Carton size 57.87*34.*33inch1470*870*860MM/
    Shipping info 29pcs/20GP, 63pcs/40HQ
