    SK250 ATV Quads-2

    Products Visitors:2014


    Description of SK250 ATV Quads:
    SK250 ATV/Quad offers strong power with comforts and stylish design. It can handle a wider variety of terrain than most other vehicles. Different colors are available for the riders to choose.
    Features of SK250 ATV Quads:
    - High durability
    - Single-cylinder, air-cooled engine

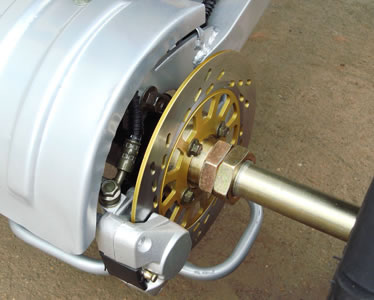

    - Drum/Disc brakes front & rear
    - Automatic clutch
    - Electric starter
    - Approve mode: EPC, EPA, EEC
    - 6 months warranty for electric parts, one year or 8000km warranty for others.
    Technical Specification of SK250 ATV Quads:
    CONFIGURE
    Colors available     Maple leaf camouflage, Army green camouflage, red ,blue ,black
    Features     *
    Decals (Y/N)     Y
    Tool kit (Y/N)     Y
    Remote start (Y/N)     N
    Remote engine stop (Y/N)     N
    Remote alarm (Y/N)     N
    Speed limiter (Y/N)     Y
    Assembly required     F/R tires, FR. shock absorber, L/R. pedal, RF. bumper, steering handle, FR. drum brake, RR. disc brake
    ENGINE INFO

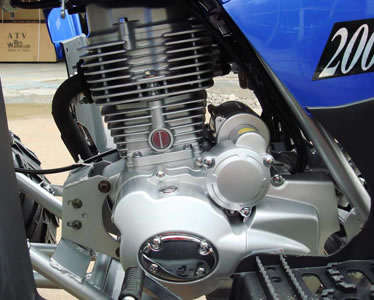

    Engine type     Single cylinder
    Engine brand     *
    Displacement     250cc
    Cooling     Air-cooled
    Max horsepower     *
    Max torque     *
    Bore*stroke     *
    Max speed     49.7mile/h
    Climbing ability     15degree
    Ignition     C.D.I
    Starting system     Electric
    Battery     12V/9Ah
    Carburetor brand     PZ27
    Engine oil     SAE15W/40SF
    Gear oil     *
    CHASSIS ETC
    Clutch     Automatic
    Transmission     4-speed+reverse
    Driveline     Chain-drive
    Driving wheel     Rear wheel drive

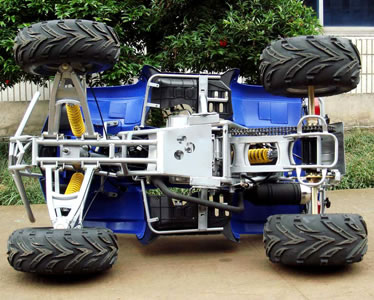

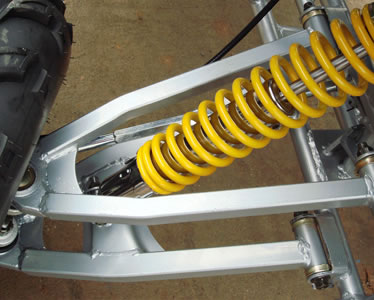

    Suspension, front/rear     Double a-arm/single a-arm
    Brakes, front/rear     Drum/disc
    Brake operation     Hand+foot
    Tires, front/rear     20*7.00-8  18*9.5-8
    Fuel capacity/type     2.1gal
    Weight ,G.W./N.W     392.4/418.8lbs
    Max load     771.6lbs
    DIMENSIONS
    Wheelbase     44.2inches
    OA L*W*H     70*44*44.8 inches
    Height to seat     33inches
    Min ground clearance     11.4inches
    Carton size     58.2*33.2*31.inches
    Shipping info     63pcs/40HQ
