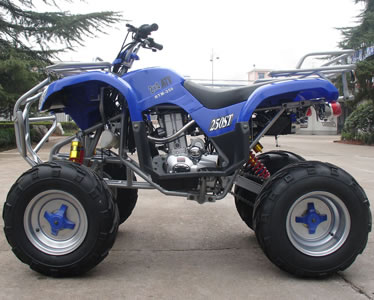

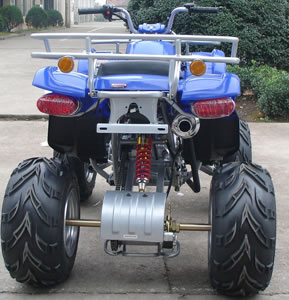

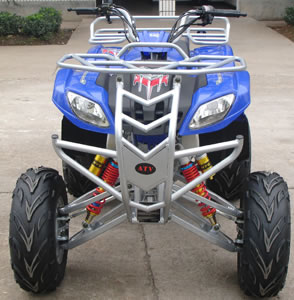

    SK250 ATV Quads-2LH

    Products Visitors:2329


    Description of SK250 ATV Quads:
    This compact and sturdy ATV/quad is versatile and highly maneuverable. Go outside and breathe the fresh air with this fun and durable ATV.
    Features of SK250 ATV Quads:
    - High durability
    - Water-cooled engine
    - Drum/Disc brakes front & rear
    - Electric starter
    - Approve mode: EPC, EPA, EEC
    - 6 months warranty for electric parts, one year or 8000km warranty for others.
    Technical Specification of SK250 ATV Quads:
    CONFIGURE
    Colors available     Army green, red, blue, black
    Features     *
    Decals (Y/N)     Y
    Tool kit (Y/N)     Y
    Remote start (Y/N)     N
    Remote engine stop (Y/N)     N
    Remote alarm (Y/N)     N
    Speed limiter (Y/N)     Y
    Assembly required     Tire, handle bar, fr/rr bumper, front shock, front drum, decorate cover, steering handle
    ENGINE INFO
    Engine type     CG
    Engine brand     DJ163FML-W
    Displacement     250cc

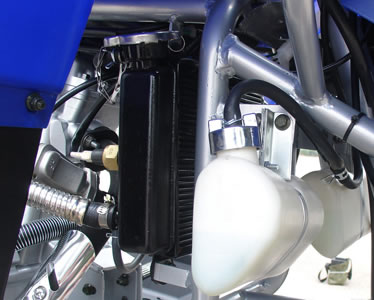

    Cooling     Water-cooled
    Max horsepower     16.3hp7500r/min
    Max torque     15n.m/6000r/min
    Bore*stroke     2.5*2.45 inches
    Max speed     52.8mile/h
    Climbing ability     15degree
    Ignition     C.D.I
    Starting system     Electric
    Battery     12V/9Ah
    Carburetor brand     PZ27
    Engine oil     SAE15W/40SF
    Gear oil     *
    CHASSIS ETC
    Clutch     Manual
    Transmission     4-speed+reverse
    Driveline     Chain-drive
    Driving wheel     Rear wheel drive

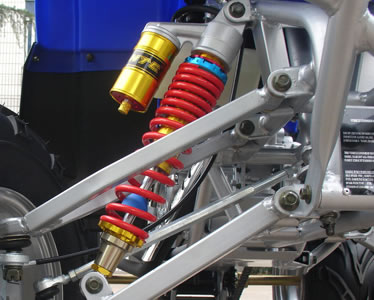

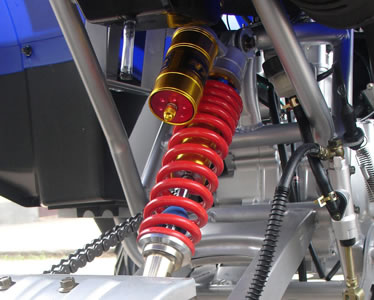

    Suspension,front/rear     Double a-arm/single a-arm

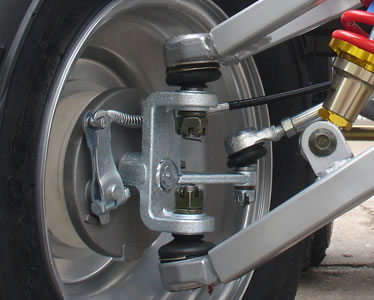

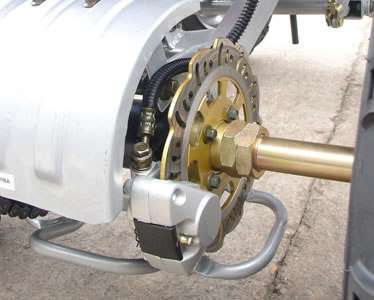

    Brakes,front/rear     Drum/disc
    Brake operation     Hand+foot
    Tires, front/rear     21*7-10/20*10-10
    Fuel capacity/type     0.88gal
    Weight, G.W./N.W     418.9lbs / 392.4lbs
    Max load     264.6lbs
    DIMENSIONS
    Wheelbase     44.9 inches
    OA L*W*H     68.5*43.3*46.7 inches
    Height to seat     33.5inches
    Min ground clearance     3.94 inches
    Carton size     65*45.3*33.5 inches
    Shipping info     42/40HQ
