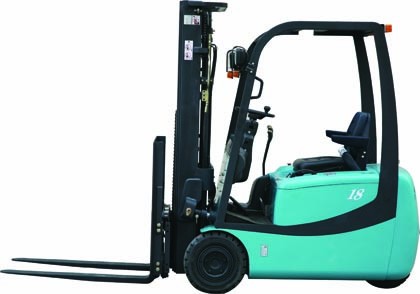

| General | Model | CPDS15 | ||
| Rated capacity | kg | 1500 | ||
| Load center | mm | 500 | ||
| Dimension | Lift height | mm | 3000 | |
| Overall dimension | Length to fork face (without fork) | mm | 1860 | |
| Overall width | mm | 1070 | ||
| Mast lowered height | mm | 1980 | ||
| Overhead guard height | mm | 1990 | ||
| Turning radius | mm | 1500 | ||
| Performance | Full load / no load | Travel speed | km/h | 14/15.5 |
| Lift speed | mm/sec | 300/470 | ||
| Max.gradeability(full load) | % | 20 | ||
| Power & Control | Battery | Voltage | V | 48 |
| Italian SME DUAL AC motor & Italian SME AC Controller | ||||
