| Specification and technical data: | |||||

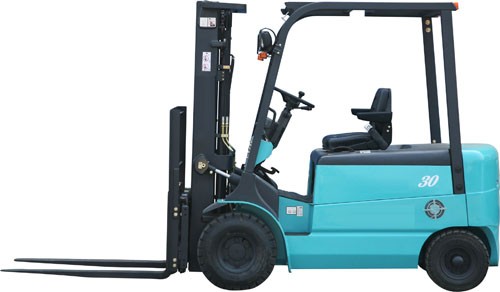

| General | Model | CPD30 | |||
| Rated capacity | kg | 3000 | |||
| Load center | mm | 500 | |||
| Dimension | Lift height | mm | 3000 | ||
| Overall dimension | Length to fork face | mm | 2481 | ||
| Overall width | mm | 1265 | |||
| Mast lowered height | mm | 2040 | |||
| Overhead guard height | mm | 2125 | |||
| Turning radius | mm | 2230 | |||
| Performance | Full load / no load | Travel speed | km/h | 12/13 | |
| Lift speed | mm/sec | 250/380 | |||
| Max grade ability | % | 10 | |||
| Power & Control Unit | Battery | Voltage | V | 80 | |
| Controller | GE separate excitation controller | ||||
