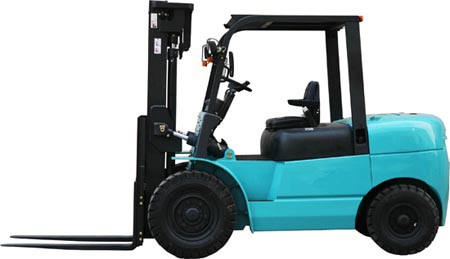

| General | Model | CPCD40 | |||||
| Rated capacity | kg | 4000 | |||||
| Load center | mm | 500 | |||||
| Dimension | Lift height | mm | 3000 | ||||
| Overall dimension | Length to fork face | mm | 3091 | ||||
| Overall width | mm | 1485 | |||||
| Mast lowered height | mm | 2390 | |||||
| Overhead guard height | mm | 2290 | |||||
| Turning radius | mm | 2790 | |||||
| Performance | no load/full load | Travel speed | Forward Shift I | km/h | 15/14 | ||
| Forward Shift II | 22/20 | ||||||
| Backward Shift I | 15/14 | ||||||
| Lift speed | mm/sec | 480/450 | |||||
| Max.gradeability | ?ݲ0% | ||||||
| Engine model | Mitsubishi S6S | A-6BG1QC-05 | |||||
