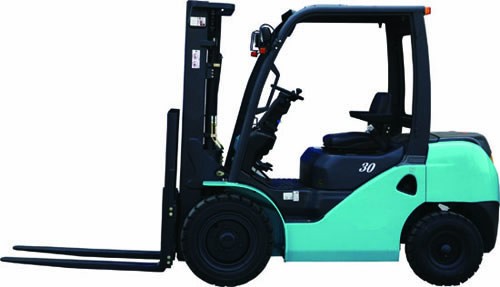

| F model forklift specification and technical data: | ||||||
| General | Model | CPCD30F | ||||
| Rated capacity | kg | 3000 | ||||
| Load center | mm | 500 | ||||
| Dimension | Lift height | mm | 3000 | |||
| Overall dimension | Length to fork face | mm | 2775 | |||
| Overall width | mm | 1236 | ||||
| Mast lowered height | mm | 2080 | ||||
| Overhead guard height | mm | 2180 | ||||
| Turning radius | mm | 2400 | ||||
| Performance | Travel speed(no load/full load) | km/h | 18/ 19 | |||
| Lift speed with load | mm/sec | 430 | ||||
| Max grade ability Max. grade ability | % | 20 | ||||
| Engine | XC BPG490;XC BPG495;Dachai CA498;ISUZU C240PKJ; ISUZU 4JG2PE; YANMAR 4TNE92; YANMAR 4TNE98 | |||||
