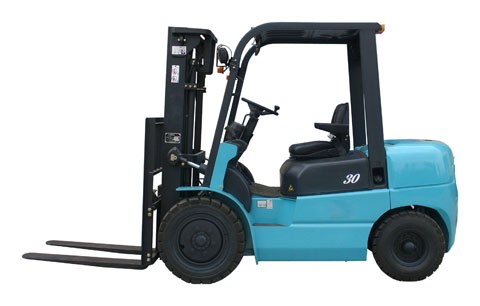

| General | Model | CPCD30 | ||||
| Rated capacity | kg | 3000 | ||||
| Load center | mm | 500 | ||||
| Dimension | Lift height | mm | 3000 | |||
| Overall dimension | Length to fork face | mm | 2720 | |||
| Overall width | mm | 1225 | ||||
| Mast lowered height | mm | 2080 | ||||
| Overhead guard height | mm | 2090 | ||||
| Turning radius | mm | 2460 | ||||
| Performance | Travel speed (full load/no load) | Hydraulic | km/h | 18/19 | ||
| Lift speed (no load/full load) | mm/sec | 430 | ||||
| Max grade ability | % | 20 | ||||
| Engine | XC490;XC495;ISUZU C240;ISUZU 4JG2;YANMAR 4YNE92; YANMAR 4TNE98 | |||||
