| Specification and technical data: | |||||||

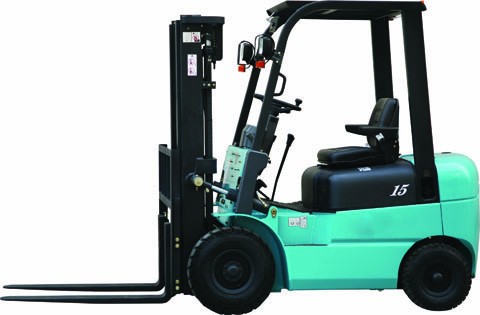

| General | Model | CPCD18 | |||||
| Rated capacity | kg | 1750 | |||||
| Load center | mm | 500 | |||||
| Dimension | Lift height | mm | 3000 | ||||
| Overall dimension | Length to fork face | mm | 2270 | ||||
| Overall width | mm | 1080 | |||||
| Mast lowered height | mm | 1995 | |||||
| Overhead guard height | mm | 2075 | |||||
| Turning radius | mm | 2000 | |||||
| Performance | Travel speed (full load/no load) | Hydraulic | km/h | 14.5/13.5 | |||
| Lift speed (no load/full load) | mm/sec | 510/450 | |||||
| Max grade ability | % | 20 | |||||
| Engine | Model | NB485BPG;XC498BPG;ISUZU C240;YANMAR 4TNE92 etc. | |||||
