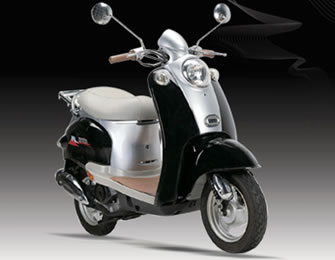

    YY50QT-5 Motor Scooter

    Products Visitors:3527


    Description of YY50QT-5 Motor Scooter:
    YY50QT-5 motor scooter is a motorcycle for riders that value the light weight. The high performance, quality construction and proven reliability of this electric motor make it an ideal vehicle.
    Features of YY50QT-5 Motor Scooter:
    -External size: 1615*630*1048mm
    -Wheel base: 1160mm

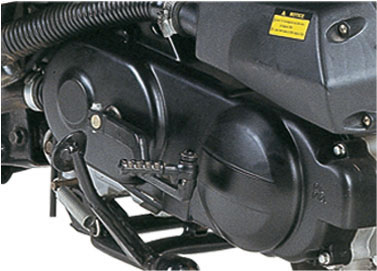

    - Single-cylinder air-cooled engine
    --Fuel capacity: 5.3L

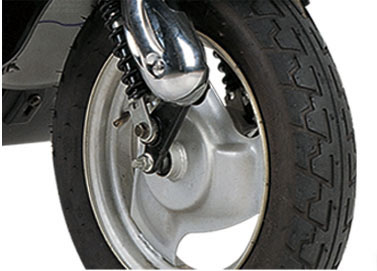

    - Drum brakes front & rear
    - Starting system: Electric/Kick
    - Approve mode: EPC, EPA, EEC
    - One year or 8000km warranty for engine, 6 month warranty for battery
    Technical Specification of YY50QT-5 Motor Scooter:
    YY50QT-5(2 Stroke)
    Dry weight: 75kg
    Wheel base: 1160mm
    Exterior size: 1615*630*1048mm
    Maximum speed: 70km/h
    Maximum payload mass: 70kg
    Fuel capacity: 5.3L
    Brake type: F/R: Drum
    Engine type: 2 stroke, single cylinder, air cool
    Maximum power: 3.0kw/8000r/min
    Starting system: Electric/Kick
    Tyre size: 3.00-10-4PR; 3.00-10-4PR
    Battery voltage: 12V/7AH

    YY50QT-5(4 Stroke)
    Dry weight: 75kg
    Wheel base: 1160mm
    Exterior size: 1615*630*1048mm
    Maximum speed: 55km/h
    Maximum payload mass: 70kg
    Fuel capacity: 5.3L
    Brake type: F/R: Drum
    Engine type: 4 stroke, single cylinder, air cool
    Maximum power: 2.20kw/8000r/min
    Starting system: Electric/Kick
    Tyre size: 3.00-10-4PR; 3.00-10-4PR
    Battery voltage: 12V/7AH
