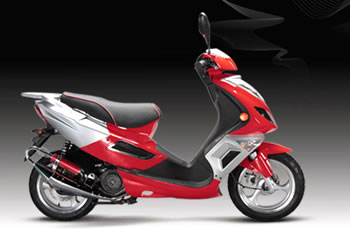

    YY50QT-28 Motor Scooter

    Products Visitors:4411


    Description of YY50QT-28 Motor Scooter

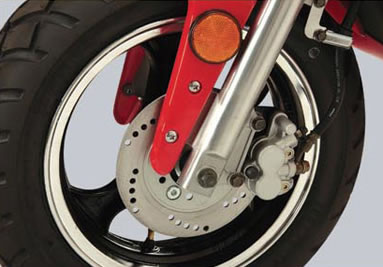

    Wide and extended seat of this 50cc motor scooter (sometimes called as electric scooter) gives you comfort during the long distance rides. Its remarkable new twin front and rear disk brake system gives more safety for you.
    Features of YY50QT-28 Motor Scooter:
    - External size: 1890*670*1170mm
    - Wheel base: 1330mm
    - Single-cylinder air-cooled engine
    - Fuel capacity: 4.20L
    - Brake type: F/R: Disk/Drum
    - Starting system: Electric/Kick
    - Approve mode: EPC, EPA, EEC
    - One year or 8000km warranty for engine, 6 month warranty for battery.
    Technical Specification of YY50QT-28 Motor Scooter:
    YY50QT-28(2 Stroke)
    Dry weight: 95kg
    Wheel base: 1330mm
    Exterior size: 1890*670*1170mm
    Maximum speed: 70km/h
    Maximum payload mass: 70kg
    Fuel capacity: 4.20L
    Brake type: F/R: Disk/Drum
    Engine type: 2 stroke, single cylinder, air cool
    Maximum power: 3.0kw/8000r/min
    Starting system: Electric/Kick
    Tyre size: 130/70-12; 130/70-12
    Battery voltage: 12V/7AH     YY50QT-28(4 Stroke)
    Dry weight: 95kg
    Wheel base: 1330mm
    Exterior size: 1890*670*1170mm
    Maximum speed: 55km/h
    Maximum payload mass: 70kg
    Fuel capacity: 4.20L
    Brake type: F/R: Disk/Drum
    Engine type: 4 stroke, single cylinder, air cool
    Maximum power: 2.20kw/8000r/min
    Starting system: Electric/Kick
    Tyre size: 130/70-12; 130/70-12
    Battery voltage: 12V/7AH
    YY125T-28
    Dry weight: 120kg
    Wheel base: 1330mm
    Exterior size: 1890*670*1170mm
    Maximum speed: 90km/h
    Maximum payload mass: 140kg
    Fuel capacity: 4.20L
    Brake type: F/R: Disk/Drum
    Engine type: 4 stroke, single cylinder, air cool
    Maximum power: 5.85kw/8500r/min
    Starting system: Electric/Kick
    Tyre size: 130/70-12; 130/70-12
    Battery voltage: 12V/7AH      YY150T-28
    Dry weight: 120kg
    Wheel base: 1330mm
    Exterior size: 1890*670*1170mm
    Maximum speed: 100km/h
    Maximum payload mass: 140kg
    Fuel capacity: 4.20L
    Brake type: F/R: Disk/Drum
    Engine type: 4 stroke, single cylinder, air cool
    Maximum power: 7.0kw/7500r/min
    Starting system: Electric/Kick
    Tyre size: 130/70-12; 130/70-12
    Battery voltage: 12V/7AH
