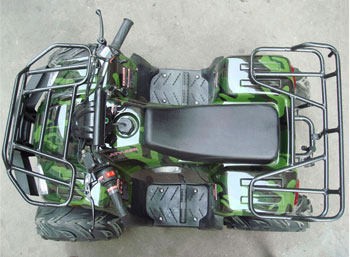

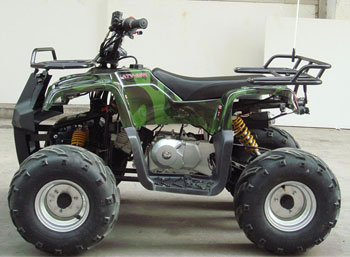

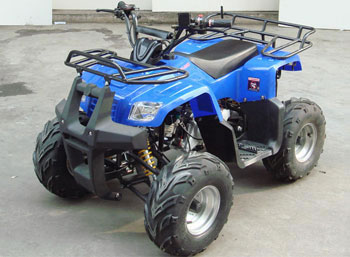

    SK110 ATV Quads-6

    Products Visitors:1657


    Description of SK110 ATV Quads:
    SK110 ATV/Quads is a trusted and long serving name in off road transportation. We remain dedicated to quality so you can count on a successful trip wherever you go. And now with the latest reliable engine, it has incredible power and performance to go with quiet running operations.
    Technical Specification of SK110 ATV Quads:
    CONFIGURE

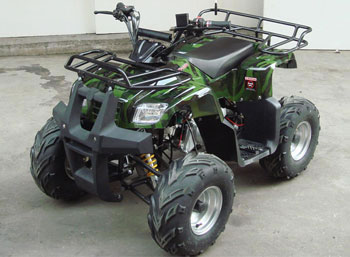

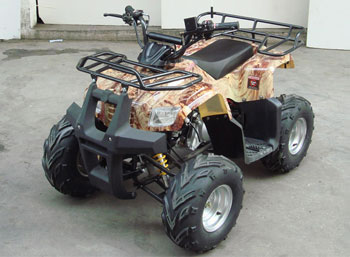

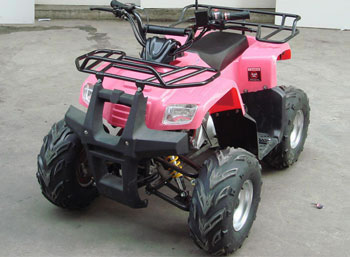

    Colors available     Red, blue, pink, maple camo, army green camo, black
    Features     *
    Decals (Y/N)     Y
    Tool kit (Y/N)     Y
    Remote start (Y/N)     N
    Remote engine stop (Y/N)     N
    Remote alarm (Y/N)     N
    Speed limiter (Y/N)     Y
    Assembly required     Handlebar, wheel, speedometer bumper, tailstock

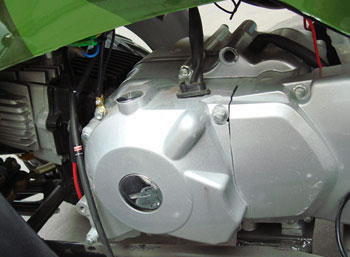

    ENGINE INFO
    Engine type     Chain
    Engine brand     *
    Displacement     110cc
    Cooling     Ail cooled
    Max horsepower     7.38hp/8500rpm
    Max torque     6.5n.m/6000rpm
    Bore*stroke     2.06*1.95inches
    Max speed     34.2mile/h
    Climbing ability     15degree
    Ignition     C.D.I
    Starting system     Electric
    Battery     12V/4Ah
    Carburetor brand     PZ19
    Engine oil     SAE15W/40SF
    Gear oil     *
    CHASSIS ETC
    Clutch     Automatic
    Transmission     *
    Driveline ;     Chain-drive
    Driving wheel     Rear wheel drive

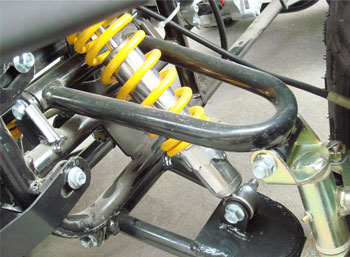

    Suspension, front/rear     Double a-arm/single

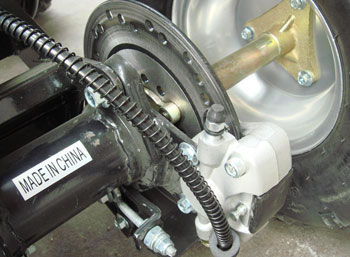

    Brakes, front/rear     Drum/disc
    Brake operation     Hand
    Tires, front/rear     16*8-7
    Fuel capacity/type     0.8gal
    Weight, G.W./N.W     242.5/198.4lbs
    Max load     *
    DIMENSIONS
    Wheelbase     34.2inches
    OA L*W*H     52.8*30.3*35.8inches
    Height to seat     25.6inches
    Min ground clearance     9.3inches
    Carton size     45.2*32.6*25.5inches
    Shipping info     112pcs/40HQ
