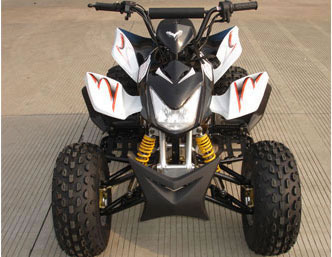

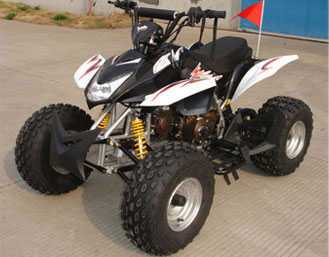

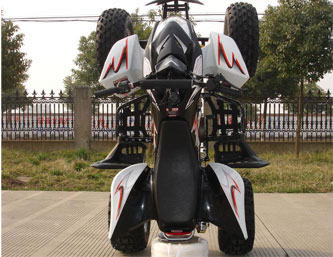

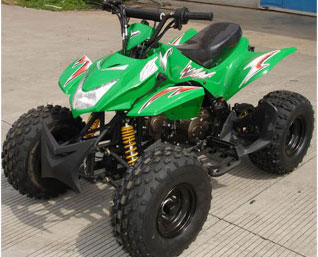

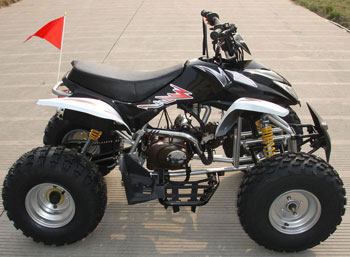

    SK110 ATV Quads-4

    Products Visitors:3191


    Description of SK110 ATV Quads:
    Jonway ATV/quads always offer what our rider wants, including quick acceleration, easy steering and smooth running. With a reliable engine and plenty of comforts, it can make the riding fun for you.
    Features of SK110 ATV Quads:
    - Light dry weight
    - A wide range of colors
    - Single-cylinder, 4-stroke engine
    - Disc brakes front & rear
    - Electric starter
    - Automatic clutch
    - Approve mode: EPC, EPA, EEC
    - 6 months warranty for electric parts, one year or 8000km warranty for others.
    Technical Specification of SK110 ATV Quads:
    CONFIGURE

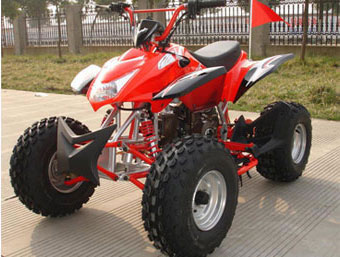

    Colors available     Red, blue, black, maple leaf camouflage
    Features     *
    Decals (Y/N)     Y
    Tool kit (Y/N)     Y

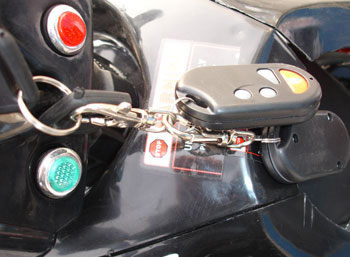

    Remote start (Y/N)     N
    Remote engine stop (Y/N)     N
    Remote alarm (Y/N)     N
    Speed limiter (Y/N)     Y
    Assembly required     Front/rear wheel, front brake, left/right turning shaft, front shock, front plastic

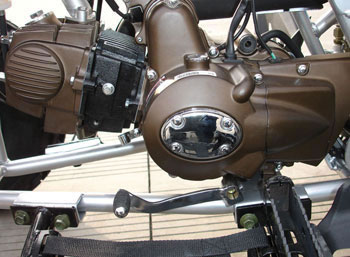

    ENGINE INFO
    Engine type     Chian
    Engine brand     *
    Displacement     110cc
    Cooling     Air cooled
    Max horsepower     7.0h.p/8000rpm
    Max torque     6.9n.m/8000rpm
    Bore*stroke     2.06*1.95inches
    Max speed     34.2mile/h
    Climbing ability     15degree
    Ignition     C.D.I
    Starting system     Electric
    Battery:        12V/7Ah
    Carburetor brand     PZ19
    Engine oil     SAE15W/40SF
    Gear oil     *
    CHASSIS ETC
    Clutch     Automatic
    Transmission     1-speed+reverse
    Driveline     Chain-drive
    Driving wheel     Rear wheel drive
    Suspension, front/rear     Double a-arm/single a-arm

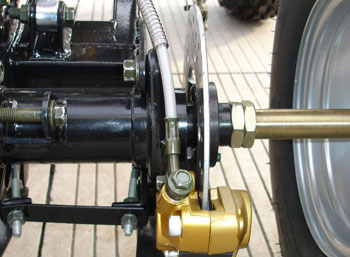

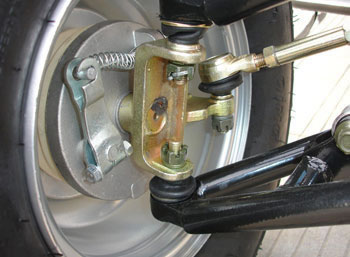

    Brakes, front/rear     Disc
    Brake operation     Hand
    Tires, front/rear     16*8-7/16*8-7
    Fuel capacity/type     1.0gal
    Weight, G.W./N.W     264.5/200.4lbs
    Max load     132.2lbs
    DIMENSIONS
    Wheelbase     38.6inches
    OA L*W*H     59.1*39.4*36.6inches
    Height to seat     27.2inches
    Min ground clearance     3.9inches
    Carton size     51.2*29.9*26.4inches
    Shipping info     104psc/40HQ
