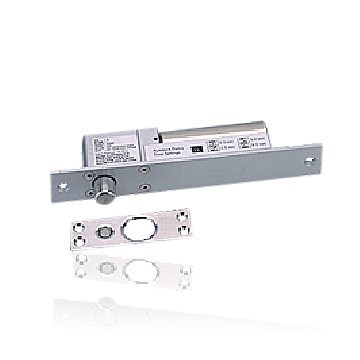

BL-C2000 Electric Bolt lock series

Specifications: 1: BL-C20001A:(Fail Safe: power to lock) 2 Line Electric Dropbolt with Low Temperature                    2: BL-C2001B:(Fail Safe: power to lock) 2 Line Electric Bolt Lock with Low Temperature and Timer                                   3: BL-C2001C:(Fail Safe: power to lock) 4 Line Electric Dropbolt with Low Temperature Signal Output: Built-in door open or door close state detection output point,NC/COM              4: BL-C2001D:(Fail Safe: power to lock) 4 Line Electric Dropbolt with Low Temperature and Timer Signal Output: Built-in door open or door close state detection output point,NC/COM                5: BL-C2001E:(Fail Safe: power to lock) 5 Line Electric Dropbolt with Low Temperature and Timer Signal Output: Built-in door open or door close state detection output point,NO/NC/COM

Specifications:

Voltage: DC12V
Start Current: 960mA
Standby Current: 130mA
Fail Safe:power to lock
Face Plate: 205Lx35WX40H(mm)
Strike plate : 90Lx25Wx2H(mm)
Bolt : 16mm(Throw) x 16mm(Diameter)
Solid Bolt: polishing housing, 800Kg Holding Force
Suitable For: Woodeng Door,Glass Door,Metal Door,Glass Door
Induction Distance:8mm
Surface Temp: Low Temperature
EL-2001B, EL-2001D,EL-2001E:
Door lock delay time: 0/ 3/ 6/ 9 seconds available to set
EL-2001C,EL-2001D:Signal Output: door state detection Output point,NC/COM
EL-2001E: Signal Output: Built-in door open or door close state detection output point,NO/NC/COM
MOV surge protection.
Suitable for all types of 180° door
Operating temp: -10~+25℃(14-131F)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 cycles
Face place material:High Aluminum,Carrulous Line Finished
Weight: 0.9kg
Standard Packing: 30pcs
