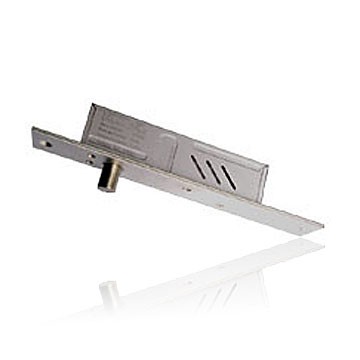

Sturdiness Electric Bolt With Narrow Panel

BL-2300/2300T
Sturdiness Electric Bolt With Narrow Pane

BL-2300T:(power to lock)
5 Lines Eletric Lock with Low Temperature and Timer

Specifications:

Voltage: DC12V
Start Current: 800mA
Standby Current: 250mA
Fail Safe:power to lock
Face Plate: 210Lx34WX34H(mm)
Strike plate : 120Lx34Wx3H(mm)
Bolt: 17mmDIA,stainless steel 13mm throw
Solid Bolt: polishing housing, 1000Kg Holding Force
Suitable For: Woodeng Door,Glass Door,Metal Door,PVC Door
Surface Temp: Low Temperature
Induction Distance:8mm
Door lock delay time: 0/ 2.5/ 5/ 8seconds available to set
Signal Output: Door Status Output,NO/NC/COM
Operating temp: -10~+25℃(14-131F)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 cycles
Face place material:High Aluminum,Carrulous Line Finished
Weight: 0.5kg
Standard Packing: 35pcs
