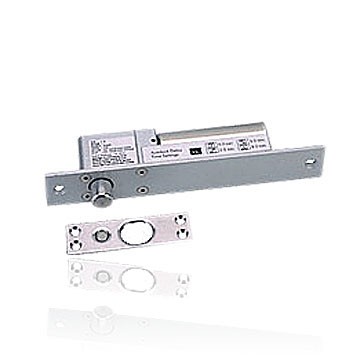

Electric Drop bolt Lock specially for automatic door

Specifications:

Voltage: DC12V
Start Current: 900mA
Standby Current: 150mA
Fail Safe: power to lock
Face Plate: 205Lx35WX41H(mm)
Strike plate : 90Lx25Wx2W(mm)
Bolt : 16mmDIA,stainless steel 16mm throw
Solid Bolt: polishing housing,

Holding Force:800KG
Suitable For: Wooden  door,Glass Door,Metal Door,Glass Door
Surface Temp: Low Temperature
Induction Distance:8mm
Door lock delay time: 0/ 3/ 6/ 9 seconds available to set
Signal Output: Door status Output,NC/COM
Operating temp: -10~+25℃(14-131F)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 cycles
Face place material:High Aluminum,Carrulous Line Finished
Weight: 0.7kg
Standard Packing: 30pcs
