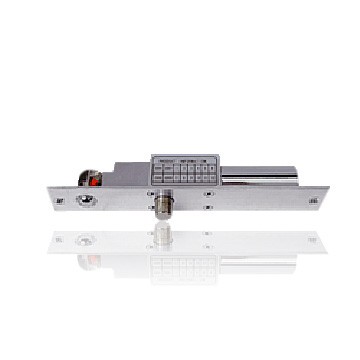

Electric Shutter Lock(power to lock)

Specifications:

Voltage: DC12V
Start Current: 650mA
Standby Current: 250mA
Fail Safe: power to lock
Face Plate: 235Lx35WX38H(mm)
Strike plate : 130Lx30Wx2W(mm)
LED: can be conscious of red led light when door locked or unlocked (the led is connected with black wire and red wire)
SENSOR: can be conscious of the locked and unlocked status of the door (two white wires)
Suitable For: Woodeng Door,Glass Door,Metal Door,Glass Door
Surface Temp: Low Temperature
Induction Distance:8mm
Door lock delay time: 0/ 3/ 6/ 9 seconds available to set
Signal Output: Door status Output,NC/COM
Operating temp: -10~+25℃(14-131F)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 cycles
Face place material:High Aluminum,Carrulous Line Finished
Weight: 0.96kg
Standard Packing: 30pcs
