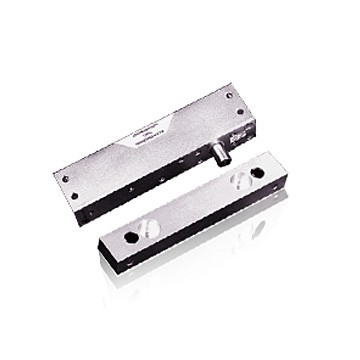

Electric Bolt Lock Hanging with Timer

Specifications

Voltage: DC12V
Start Current: 800mA
Standby Current: 150mA
Fail Safe:power to lock
Face Plate: 150Lx24.5WX39H(mm)
Bolt: 17mmDIA,stainless steel 13mm throw
Solid Bolt: polishing housing, 900Kg Holding Force
suitable for only swing-in or swing-out open wood and metal door, can easy to be installed external door frame.
Surface Temp: Low Temperature
Induction Distance:8mm
Door lock delay time: 0/ 3/ 6 seconds available to set
Signal Output: lock status indicator and door status Output.NC/NO/COM
Operating temp: -10~+25℃(14-131F)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 cycles
Face place material:High Aluminum,Carrulous Line Finished
Weight: 0.9kg
Standard Packing: 20pcs
