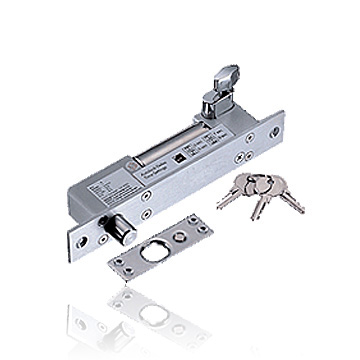

Electric Bolt (power to open)

BL-2500A/2500B
Electric Bolt (power to open)

BL-2500A: (power to open)
N.C. door position output point

 BL-2500B: (power to open)
Door position detection and bolt position (N.C. & N.O.) output points

Specifications:

Voltage: DC12V
Start Current: 900mA
Standby Current: 320mA
Fail Safe: (power to open)
Face Plate: 200Lx32WX40H(mm)
Strike plate : 90Lx26Wx2H(mm)
Bolt :16mm(Throw) x 15.5mm(Diameter)
  has door position detection N.C output point.
  has door position detection and lock barrel position N.C and N.O output points
Built-in oval cylinder as unlocking device. Use of oval cylinder to unlock when power cut occurred or during emergency
Built-in photo couplers door open push button input contact. Door will lock again automatically when door is not open within 5 seconds
Suitable For: Woodeng Door,Glass Door,Metal Door,Glass Door
Surface Temp: Low Temperature
Suitable for 180° door.
Operating temp: -10~+25℃(14-131F)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 cycles
Face place material:High Aluminum,Carrulous Line Finished
Weight: 1.2kg
Standard Packing: 10pcs
