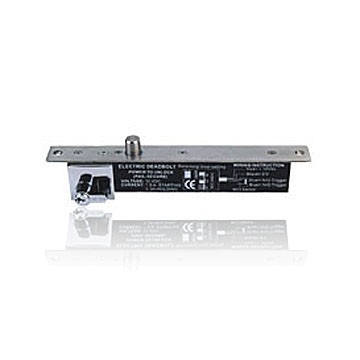

Fail Secure Electric Drop bolt With Mort Lock Cylinder
BL-2400T Fail Secure Electric Drop bolt With Mort Lock
Cylinder
Specifications:
Voltage: DC12V
Start Current: 950mA
Standby Current: 150mA
Fail Safe: (power to open)
Face Plate: 260Lx30WX48H(mm)
Strike plate : 100Lx25Wx3H(mm)
Bolt :16mmDIA,stainless steel 16mm throw
Solid Bolt: polishing housing, 2000Kg Holding Force
Suitable For: Woodeng Door,Glass Door,Metal Door,Glass Door
Surface Temp: Low Temperature
Induction Distance:8mm
Autolock Time Delay: 0,3,6,9sec.
Operating temp: -10~+25℃(14-131F)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 cycles
Face place material:High Aluminum,Carrulous Line Finished
Weight: 1.5kg
Standard Packing: 10pcs
