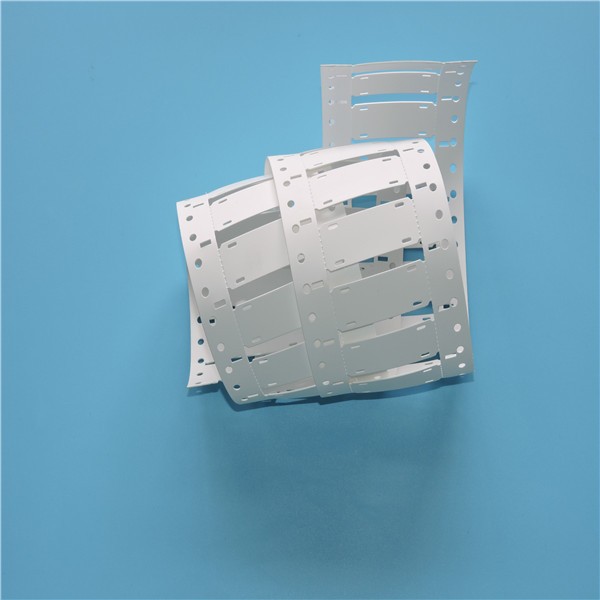

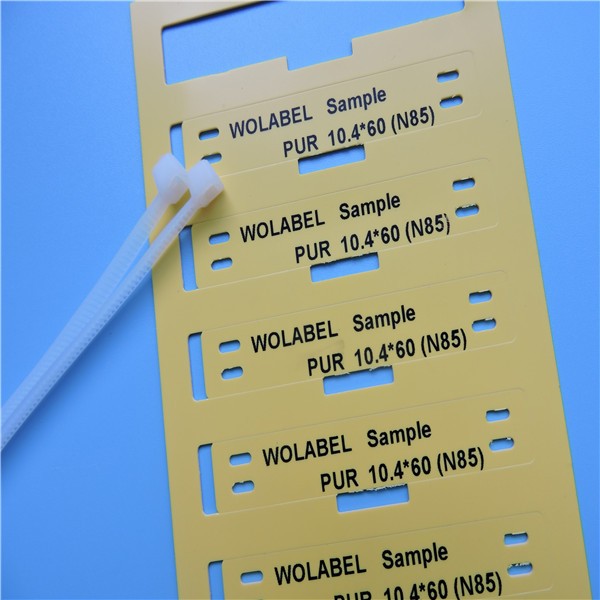

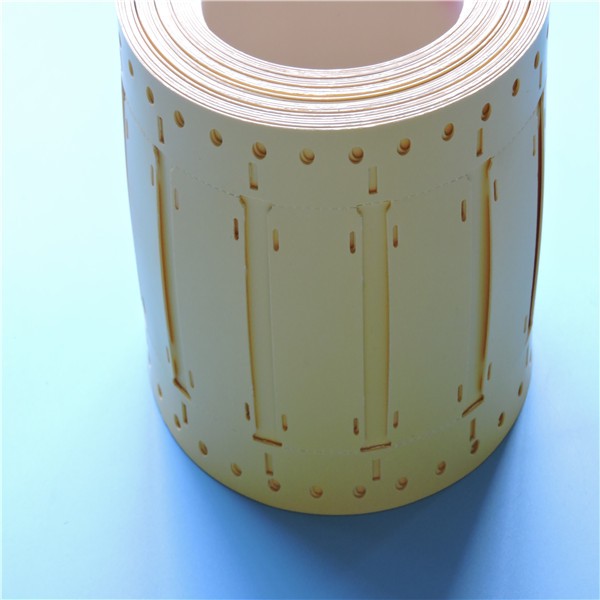

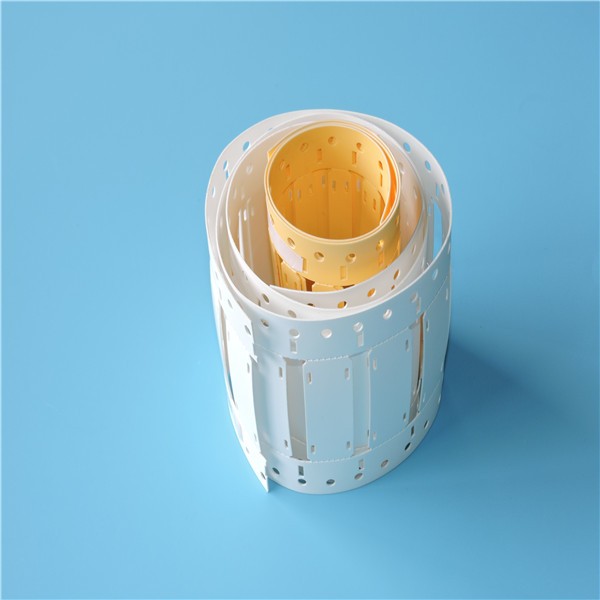

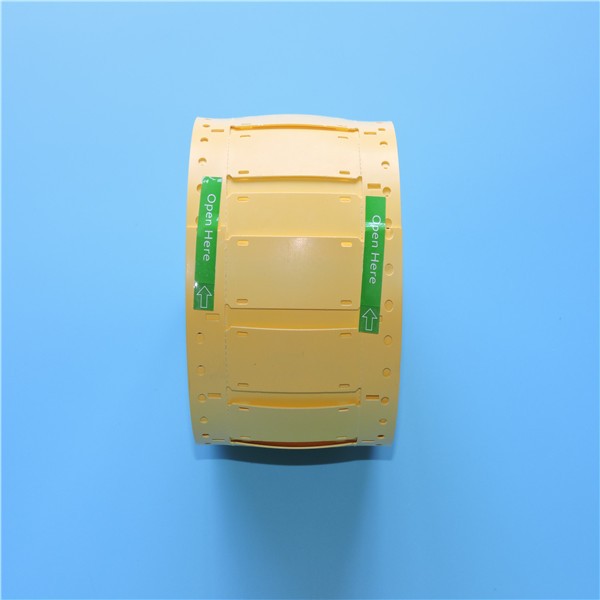

Low Smoke Flame Retardant Wire Markers
Description
MTVLD(DIN) Low Smoke Flame Retardant Wire Markers are made by means of bombardment and cross-linking of the environmentally friendly polyolefin with high energy electron beams. Low Smoke Flame Retardant Wire Markers are non-adhesive that can be used to identify EMU for high-speed rails, subways, motor train units, submarines and aerospace. Market tags are attached on large cables and wire bundles with cable ties and keep permanent identification.
Features
Highly flame retardant, low toxicity index, meets international locomotive standards Using the binding wire, easy to handle Temperature resistance, rated temperature 125°C
Not necessary to disconnect the electrical return circuit when installing
the identification maker labels
Halogen free low smoke emitting materials, ideal for identifying motor
train unit, rail transit, aerospace and naval vessels RoHS compliant, meets SONY SS-00259 Permanent identification, not melting in high temp., not turning fragile in low temp., resistant to scrape, rub, abrasion
Computer-printable, any character and logo are easy to design.
Rated Temperature
Continuous operating temperature: -55°C~135°C/-67°F~+275°F Max. storage and transportation temp.: ≤+50°C/+122°F
Standards
AMS-DTL-23053/5, Compatible UL224
Color code soundness: SAE-AS 81531 and MIL-STD-202F/215J
Structure
Dimensions
Order description
Width G(mm)
L Length(mm)
Printed Characters
Cable OD(mm)
Height
G
Length
l
MTVLD-10.4-45/4/
10.4
45
10.4
25
5.08~12.7
MTVLD-10.4-53/4/
10.4
53
10.4
33
5.08~12.7
MTVLD-10.4-64/4/
10.4
64
10.4
44
5.08~12.7
MTVLD-10.4-76/6/
10.4
76
10.4
56
5.08~12.7
MTVLD-10.4-90/6/
10.4
90
10.4
70
5.08~12.7
MTVLD-15.0-45/4/
15.0
45
15.0
25
12.7~19.1
MTVLD-15.0-53/4/
15.0
53
15.0
33
12.7~19.1
MTVLD-15.0-64/4/
15.0
64
15.0
44
12.7~19.1
MTVLD-15.0-76/6/
15.0
76
15.0
56
12.7~19.1
MTVLD-15.0-90/6/
15.0
90
15.0
70
12.7~19.1
MTVLD-20.3-45/4/
20.3
45
20.3
25
19.1~25.4
MTVLD-20.3-53/4/
20.3
53
20.3
33
19.1~25.4
MTVLD-20.3-64/4/
20.3
64
20.3
44
19.1~25.4
MTVLD-20.3-76/6/
20.3
76
20.3
56
19.1~25.4
MTVLD-20.3-90/6/
20.3
90
20.3
70
19.1~25.4
MTVLD-25.4-45/4/
25.4
45
25.4
25
≥25.4
MTVLD-25.4-53/4/
25.4
53
25.4
33
≥25.4
MTVLD-25.4-64/4/
25.4
64
25.4
44
≥25.4
MTVLD-25.4-76/6/
25.4
76
25.4
56
≥25.4
MTVLD-25.4-90/6/
25.4
90
25.4
70
≥25.4
