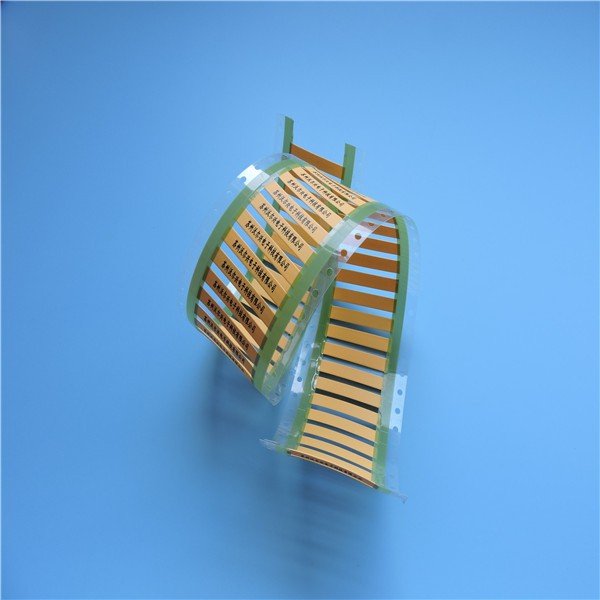

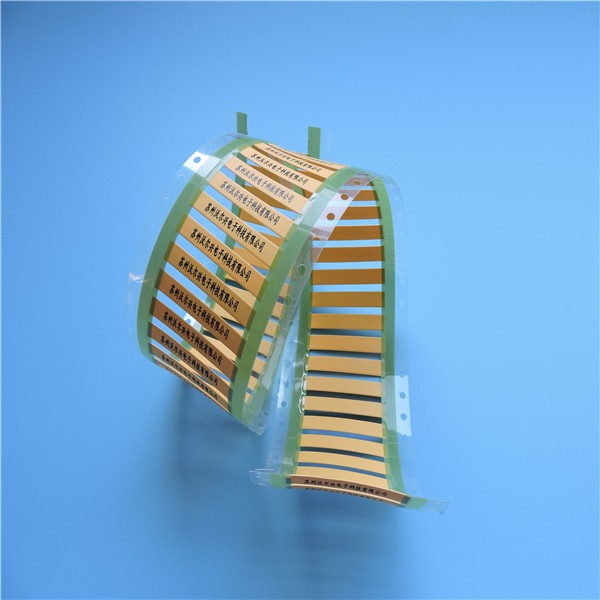

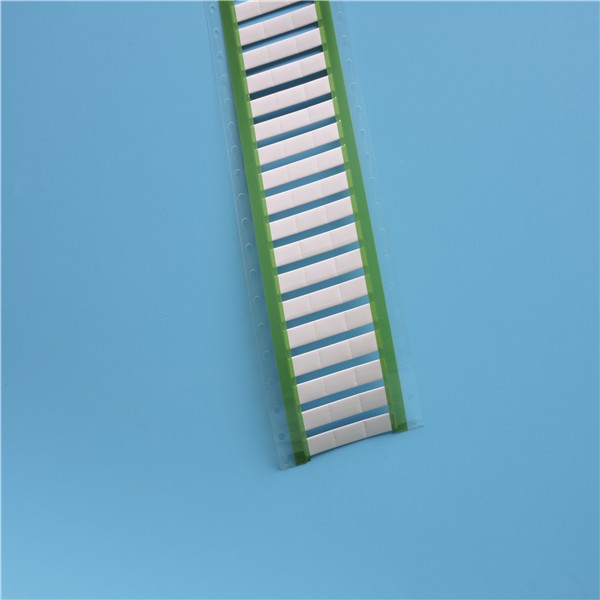

Heat Shrink Low Smoke Wire Marker Sleeve
Description
MSVLD(DIN) series Heat Shrink Low Smoke Wire Marker Sleeveis the halogen free, low smoke, highly flame retardant cable and wire identification sleeves, which is designed to meet the requirements of EMU for high-speed rails, subways and motor train units. It is made of the polyolefin by means of bombarding and cross-lining of high energy electron beam. Flammability, smoke density, toxicity index, electrical, physical and chemical performances conform to the standards of international motor vehicles. The printed characters are amazingly abrasion resistant, even if the words have encountered detergent or corrosion of military oil before and after shrinking. The soundness of words conforms to the requirements of SAE-AS 81531 and MIL-STD-202F/215J and keeps permanent identification.
Features
Halogen free low smoke emission materials, designed ideally for motor train unit, rail transit, aerospace, and shipbuilding industrials Standard temperature resistance, rated temperature 125°C Highly flame retardant, low smoke emissive; meets international locomotive relevant standards ROHS compliant; meets SONY SS-00259 High reliability, permanent identification Heat sensitive, swift recovery Computer printable, any characters and logo are easy to design
Rated Temperature
Continuous operating temperature: -55°C~125°C/-67°F~257°F
Min. shrink temperature: 85°C/185°F
Full recovery temperature: 115°C~200°C/239°F~392°F, 8~3minutes
Max. storage and transportation temperature: ≤50°C/122°F
Standards
Raw material Standards: ASTM D 2671/DIN5510-2 Color code soundness: SAE-AS 81531 and MIL-STD-202F/215J British and French Smoke Poison Standards: BS 6853/NF F 16-101
Structure
Dimensions(2:1)
Dimensions(3:1)
Order Description
Expanded As Supplied(mm)
Recovered After Heating(mm)
Internal Diameter ID1
Flatten Width G
Dual Wall Thickness H
Inner Diameter ID2
Single Wall Thickness h
MSVLD-3X-1.6/
2.00±0.20
3.7±0.3
0.47±0.10
≤0.53
0.52±0.06
MSVLD-3X-2.4/
2.79±0.20
5.0±0.3
0.47±0.10
≤0.79
0.57±0.06
MSVLD-3X-3.2/
3.64±0.23
6.3±0.4
0.48±0.10
≤1.06
0.61±0.06
MSVLD-3X-4.8/
5.26±0.25
8.9±0.4
0.49±0.10
≤1.59
0.67±0.06
MSVLD-3X-6.4/
6.92±0.28
11.5±0.4
0.50±0.10
≤2.36
0.71±0.06
MSVLD-3X-9.5/
10.2±0.32
16.7±0.5
0.52±0.11
≤3.18
0.77±0.06
MSVLD-3X-12.7/
13.5±0.36
21.8±0.6
0.53±0.11
≤4.75
0.80±0.07
MSVLD-3X-19/
20.1±0.40
32.2±0.6
0.55±0.11
≤6.35
0.84±0.07
MSVLD-3X-25/
26.7±0.45
42.5±0.7
0.56±0.12
≤8.47
0.86±0.07
MSVLD-3X-38/
39.8±0.51
63.2±0.8
0.57±0.12
≤12.9
0.89±0.07
MSVLD-3X-51/
53.0±0.56
83.9±0.9
0.57±0.13
≤17.2
0.90±0.08
MSVLD-3X-76/
79.4±0.56
125.3±1.0
0.59±0.13
≤25.8
0.92±0.09
