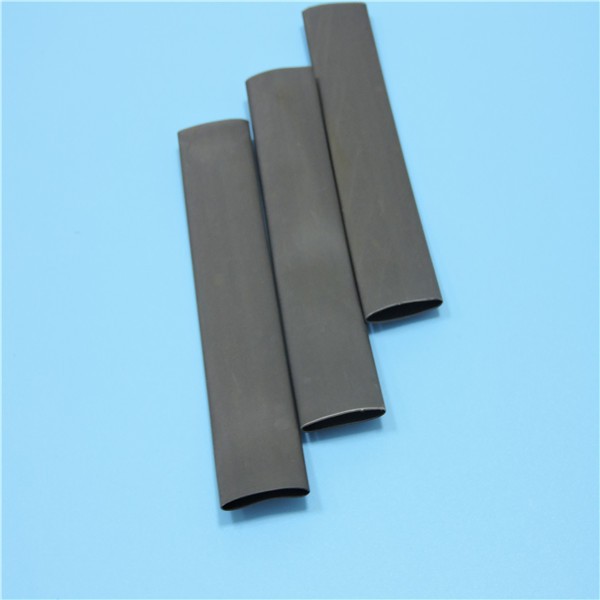

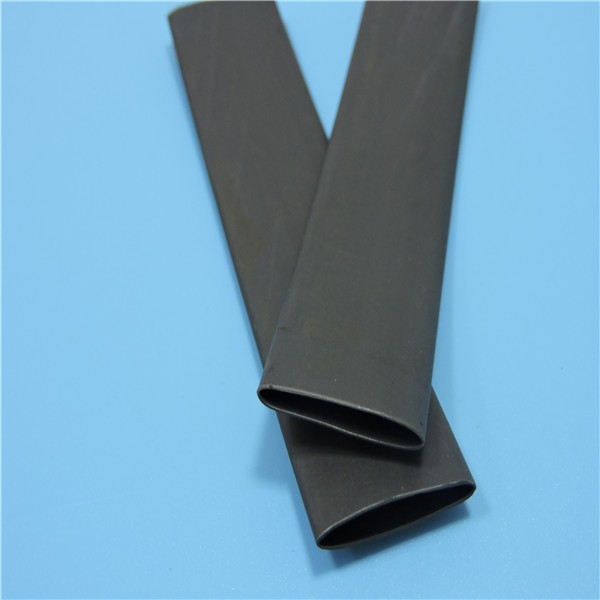

      Flexible Silicone Rubber Heat Shrink Ttube

      Products Visitors:137



      Flexible Silicone Rubber Heat Shrink Ttube




      Description


      TZRS-SIL200(1.7X) is made of silicone rubber and polymer elastomer modified by radiation can be used at high temperature for a long time, acid and alkali resistance, solvent resistance, resistance to external mechanical damage. It can be used for military vehicles, high-speed train, ship equipment or electrical appliances industries such as cable terminal, separating junction protection.


      Features


      *         Acid and alkali resistant, corona resistant, prevent mildew

      *         Flame retardant, flexible

      *         Shrink Temperature：90°C~170°C

      *         Continuous Operating Temperature：-55°C~200°C

      *         Shrink Ratio：1.7:1

      *         Environmental standards：RoHS

      *         Standard colors: Black, grey, red, others can custom made




      Dimension


      Size(mm)

      As

      Supplied

      (mm) D

      After Recovery

      (mm)

      Standard

      Length

      Inner diameter d

      Wall thickness w

      (m/spool)

      Φ2.4

      ≥2.4

      ≤1.2

      0.51±0.08

      200

      Φ3.2

      ≥3.2

      ≤1.6

      0.76±0.13

      100

      Φ4.8

      ≥4.8

      ≤2.4

      0.89±0.18

      50

      Φ6.4

      ≥6.4

      ≤3.2

      0.89±0.18

      50

      Φ9.5

      ≥9.5

      ≤4.8

      0.89±0.18

      50

      Φ12.7

      ≥12.7

      ≤6.4

      0.89±0.18

      50

      Φ19.1

      ≥19.1

      ≤9.5

      1.07±0.21

      30

      Φ25.4

      ≥25.4

      ≤12.7

      1.25±0.30

      30

      Φ38.1

      ≥38.1

      ≤19.1

      1.40±0.38

      30

      Φ50.8

      ≥50.8

      ≤25.4

      1.65±0.43

      30


      Technical Data


      Property

      Test Method

      Test Method

      Tensile strength

      ≥12MPa

      ASTM D 638

      Ultimate elongation

      ≥400%

      ASTM D 638

      Tensile strength

      Ultimate elongation

      ≥300%

      250℃×168h

      Flammability

      Self-quenching In 15 seconds

      ASTM D 2671

      Longitudinal expansion rate

      -5%～+5%

      ASTM D 2671

      Heat shock

      No cracking

      300℃×4h

      Breakdown strength

      ≥12kV/mm

      ASTM D 2671

      volume resistivity

      ≥109Ω.cm

      ASTM D 876


      Lead time :1-2 Weeks.
      Package:Standard Exporting Pakage
      Each items will be checked  twice and packed well before shipment .
      We usually ship our goods by express  courier, airway, or ocean way. Generally , we use DHL, EMS, UPS , but depends on our customer's requirement.
