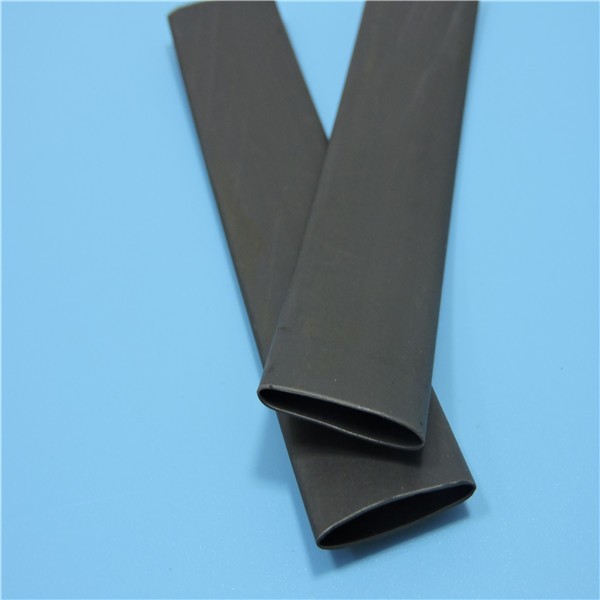

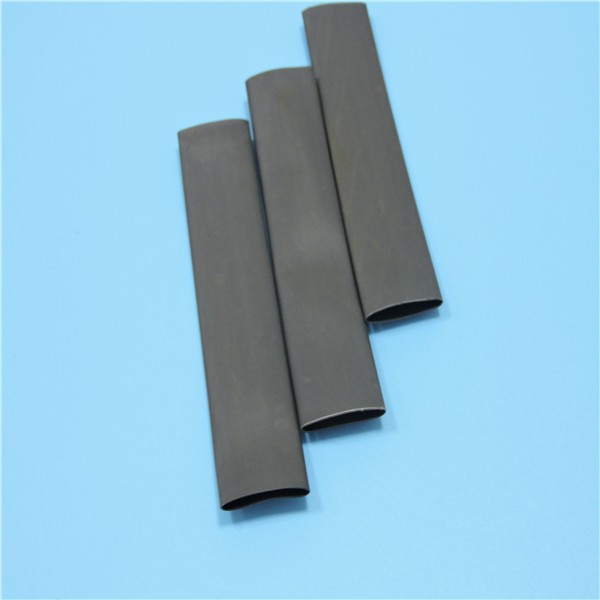

Fluoroelastomer (Viton) Heat Shrink Tubing
Description TZRS-VT200(2X) modified fluoroelastomer heat-shrinkable tubing is highly abrasion and cut-through resistant and can withstand a wide variety of fuels, lubricants, acids and highly corrosive fluids at temperatures up to 200°C. In addition to its high continuous operating temperature and chemical-resistance properties, this tubing is very flexible and is easily marked by hot-stamp or printwheel methods. When heated in excess of 175°C (347°F), TZRS-VT200(2X) tubing rapidly shrinks to a skintight fit. TZRS-VT200(2X) tubing is rated for continuous operation from –55°C (–67°F) to 200°C (392°F).135°C/275°F
Features
Dimension
Size(mm)
As
Supplied
(mm) D
After Recovery
(mm)
Standard
Length
Inner diameter d
Wall thickness w
(m/spool)
Φ2.4
≥2.4
≤1.2
0.51±0.08
200
Φ3.2
≥3.2
≤1.6
0.76±0.13
100
Φ4.8
≥4.8
≤2.4
0.89±0.18
50
Φ6.4
≥6.4
≤3.2
0.89±0.18
50
Φ9.5
≥9.5
≤4.8
0.89±0.18
50
Φ12.7
≥12.7
≤6.4
0.89±0.18
50
Φ19.1
≥19.1
≤9.5
1.07±0.21
30
Φ25.4
≥25.4
≤12.7
1.25±0.30
30
Φ38.1
≥38.1
≤19.1
1.40±0.38
30
Φ50.8
≥50.8
≤25.4
1.65±0.43
30
Technical Data
Property
Test
Method
Test
Method
Tensile strength
≥12MPa
ASTM D 638
Ultimate elongation
≥400%
ASTM D 638
Tensile strength
Ultimate elongation
≥300%
250℃×168h
Flammability
Self-quenching
In 15 seconds
ASTM D 2671
Longitudinal
expansion rate
-5%～+5%
ASTM D 2671
Heat shock
No cracking
300℃×4h
Breakdown strength
≥12kV/mm
ASTM D 2671
volume resistivity
≥109Ω.cm
ASTM D 876
Lead time :1-2 Weeks.
