Halogen Free Heat Shrink Cable Marker
Description
Halogen Free Heat Shrink Cable Marker is halogen free, environmentally friendly, heat shrinkable identification sleeves. It is made of cross-linked environmentally friendly polyolefin bombarded by high power electron beam with electronic accelerators to meet high end markets where highly reliable, economical and environmentally friendly cable& wire identification is required. It accords to the requirements of UL224, CAN/CSA C22.2. Shrink ratios, both 2:1 and 3:1 are available. See the below tables.
Features
Halogen free, ideally used for electronic or electrical circuits, communications, architecturalindustries Temp. Resistance: 125°C Highly flame retardant, VW-1 ROHS compliant and meet SONY SS-00259 High reliability, permanent identification Heat sensitive, shrinking quickly Computerized lettering or fonts at your disposal. Standard Color: yellow, white
Rated Temperature Continuous operating temperature: -55°C~125°C/-67°F~257°F Min. shrink temperature: 85°C/185°F Full recovery temperature: 115°C~200°C/239°F~392°F, 8~3minutes Max. storage and transportation temperature: ≤50°C/122°F
Standards Material Standard: UL224, CAN/CSA C22.2 Color Code Soundness: SAE-AS 81531and MIL-STD-202F/215J

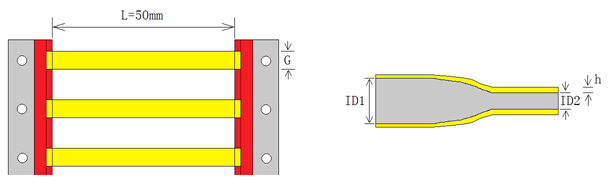

Structure
Dimensions(2:1)
Order Description
Expanded As Supplied (mm)
Recovered After Heating (mm)
Inner
Diameter ID1
Flatten
width G
Dual
Wall Thickness H
Inner
DiameterID2
Single
Wall Thickness h
MSVLU-2X-1.6/
2.00±0.20
3.7±0.3
0.48±0.10
≤0.79
0.45±0.06
MSVLU-2X-2.4/
2.79±0.20
5.0±0.3
0.48±0.10
≤1.18
0.49±0.06
MSVLU-2X-3.2/
3.64±0.23
6.3±0.4
0.48±0.10
≤1.59
0.51±0.06
MSVLU-2X-4.8/
5.26±0.25
8.9±0.4
0.49±0.10
≤2.36
0.54±0.06
MSVLU-2X-6.4/
6.92±0.28
11.5±0.4
0.50±0.10
≤3.18
0.56±0.06
MSVLU-2X-9.5/
10.2±0.32
16.7±0.5
0.51±0.11
≤4.75
0.59±0.06
MSVLU-2X-12.7/
13.5±0.36
21.8±0.6
0.52±0.11
≤6.35
0.60±0.07
MSVLU-2X-19/
20.1±0.40
32.2±0.6
0.53±0.11
≤9.53
0.62±0.07
MSVLU-2X-25/
26.7±0.45
42.5±0.7
0.55±0.12
≤12.7
0.63±0.07
MSVLU-2X-38/
39.8±0.51
63.2±0.8
0.57±0.12
≤19.1
0.64±0.07
MSVLU-2X-51/
53.0±0.56
83.9±0.9
0.58±0.13
≤25.4
0.64±0.08
MSVLU-2X-76/
79.4±0.56
125.3±1.0
0.59±0.13
≤38.1
0.64±0.09
Dimensions(3:1)
Standard Packaging Data
