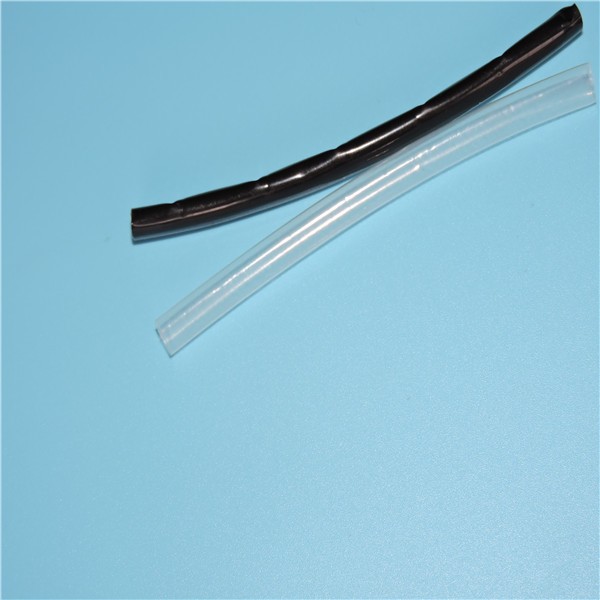

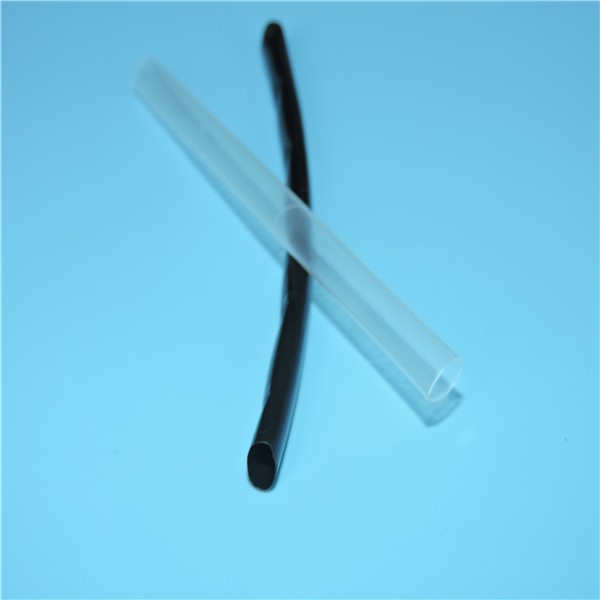

PVDF-Kynar Heat Shrinkable Tubing
Description
TZRS-PVDF-(2X) Kynar Heat shrinkable Tubing is normally designated as kynar tubing, is a cross-linked, thin-walled, heat-shrinkable tubing offering a high degree of mechanical strength and high-temperature resistance. Fabricated from polyvinylidene fluoride, the tubing has outstanding abrasion resistance and cut-through properties in combination with high dielectric strength. It is inherently flame retardant, semi-rigid and highly resistant to most industrial fuels, chemicals and solvents. When heated in excess of 347°F (175°C), TZRS-PVDF-(2X)-B tubing rapidly shrinks to a skintight fit.
Features
Approval: UL, VW-1, File No.E249362 Meet: RoHS, SAE-AMS-DTL-23053/18 Operating temperature: -55°C to + 175°C Minimum fully recovery temperature: 175°C
Technical Data
Dimension
Size
As
supplied D(mm)
After
full recovered（mm）
Standard
package
(M/Roll)
Inner diameter d
Wall thickness w
Φ0.8
≥0.8
≤0.4
0.25±0.05
200
Φ1.0
≥1.0
≤0.5
0.25±0.05
200
Φ1.2
≥1.2
≤0.6
0.25±0.05
200
Φ1.6
≥1.6
≤0.8
0.25±0.05
200
Φ2.4
≥2.4
≤1.2
0.25±0.05
200
Φ3.2
≥3.2
≤1.6
0.25±0.05
200
Φ4.8
≥4.8
≤2.4
0.25±0.05
100
Φ6.4
≥6.4
≤3.2
0.30±0.08
100
Φ9.5
≥9.5
≤4.8
0.30±0.08
100
Φ12.7
≥12.7
≤6.4
0.30±0.08
100
Φ15.0
≥15.0
≤7.5
0.40±0.08
100
Φ19.1
≥19.1
≤9.5
0.43±0.08
50
Φ25.4
≥25.4
≤12.7
0.48±0.08
50
Φ38.1
≥38.1
≤19.1
0.51±0.08
50
Φ50.8
≥50.8
≤25.4
0.58±0.08
50
Lead time :1-2 Weeks.
