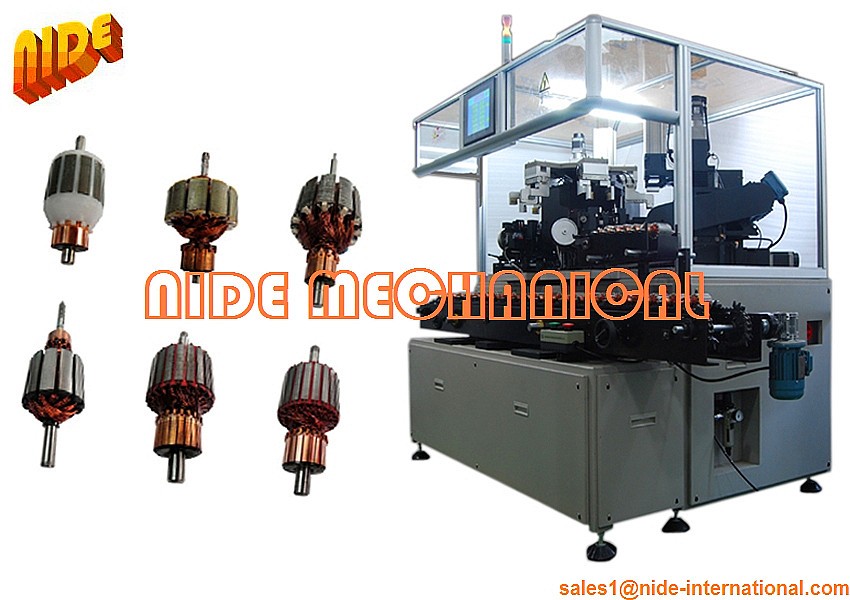

ND-XSR-5BL Automatic armature balancing machine
(five station) (for mixer armature, R cutter)

Model: five station(double cutter, with auto conveyor line)
Main configuration:
1. Cylinder: SMC
2. Servo motor: Mitsubishi
3. Sensor: Keyence, Omron, Kerui
4. Touch screen: Keyence
5. PLC: Keyence
6. Stepping motor: Oriental motor or Sanyo
Armature information:
1. weight: less than 1.6kg
2. Armature stack length: 10~20, 20~60mm
3. Armature diameter: Ф25~40mm(II model machine)
4. Armature diameter: Ф40~60mm(III model machine)
Balancing speed: 1000~2200RPM
Cutting method: use R shape cutter to cut the armature core run-out, control the cutting depth and length
Power: AC380V
Air pressure: 0.4~0.6Mpa
Initial unbalancing value: it will be different if the armature radius and cutting depth is different, for example: for Ф32mm armature, the single cutting point ≤500mg. forФ40mm armature, the single cutting point ≤800mg.
Five station machine(II model): 7~8sec(initial measuring, cut on left and right side each time, final measuring)
Residual unbalancing eccentricity: better than 6.3 degree in National standard
Machine dimension: 1700*850*1800mm
