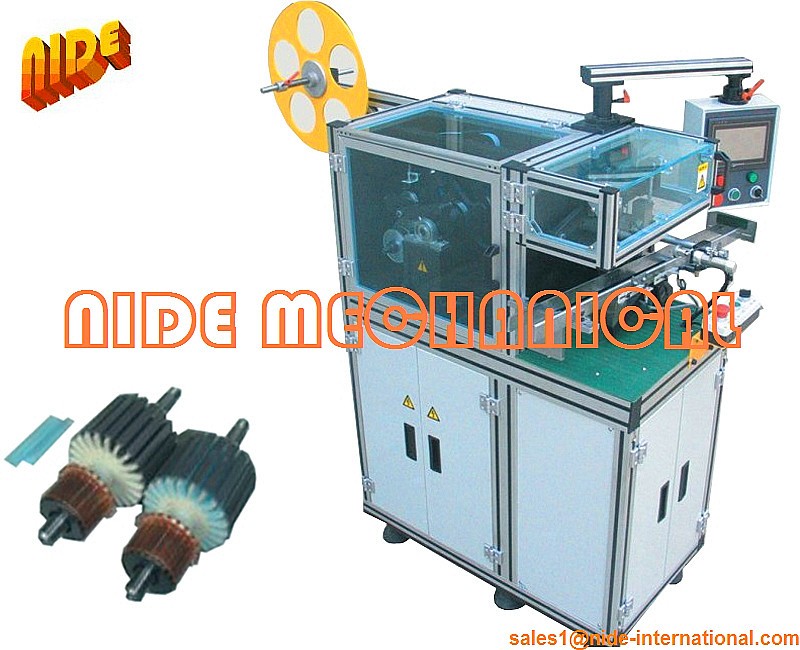

ND-LSI-1 Insulation paper inserting machine

Main components:

PLC: MITSUBISHI or Omron programmable controller

Relay: Omron

WENVIEW PLD（7”）

Frequency converter: PANASONIC

Air switch: MITSUBISHI

Power source: MINGWEI

Brake: MIKI PULLEY

Ball bearing: UBC (USAbrand)

Linear guide: ABBA or CPC or SHANGYING

Cylinder: SMC

Air source treatment elements and electromagnetic valve: SMC

SMC air-source handler

Switch：SCHNEIDER

Main technical data:

Armature O.D: Ф20-55mm

Length of lamination: Max60mm

Shaft length: 32~250mm

Shaft O.D: Ф6~Ф20mm

Slot number: 8-24 slots

Commutator O.D: Ф16~Ф50mm

Speed regulation range: 0~60Hz

Length of insulation paper: 15-60mmadjustable

Thickness of insulation paper:0.1 mm~0.5 mm

Type of insulation material: DMD, DM, Polyester film(thickness0.125mm), etc.

Insulation paper shape: V or edge-folding V

Efficiency: 0.5sec - 0.8sec/per slot, loadingàclampàfeeding paperàunloading

Air source: air pressure: 4~6kg/cm2

Machine power: 1.0KW

Voltage: AC220V±10%, 50/60Hz

Weight: about400Kg

Dimension: L910 mmx880 mmx1300mm3

Features:

Continue operation for 3 shifts, automatically loading and unloading armature could store production parameter for 100nos armatures

Display production data, including shift output, consuming time, etc. During machine running, the machine will alarm once anything abnormal occurs

Three operation modes could be switched over: JOG, automatic and stepping

Easy to adjust
