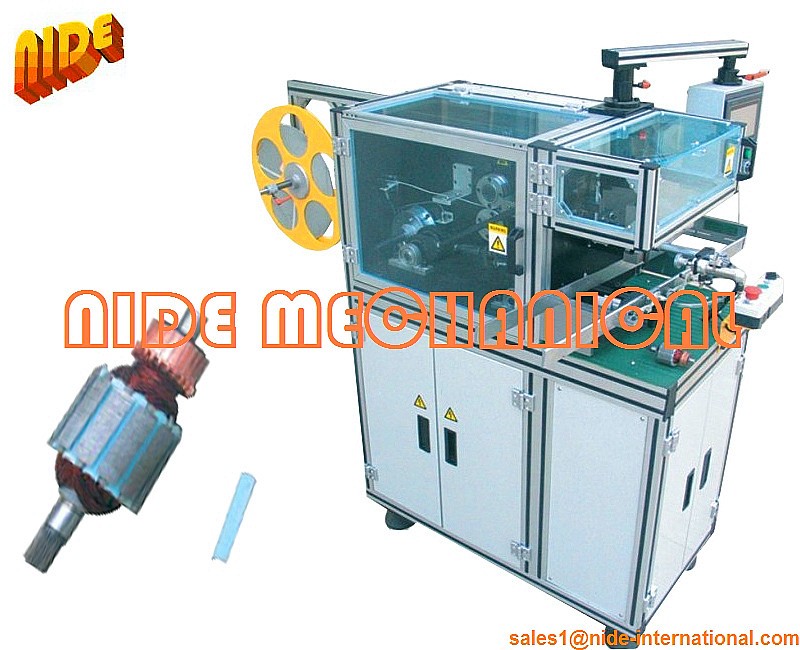

ND-LSI-2 wedge inserting machine

Main components:

PLC: MITSUBISHI or Omron programmable controller

Relay: OMRON

Proximity switch: OMRON

MITSUBISHI or Panasonic frequency converter

Touch screen: WENVIEW PLD（7”）

Air switch: MITSUBISHI

Power source: Mingwei

Switch: SCHNEIDER

Brake: MIKIPULLEY (Japanbrand)

Ball bearing: UBC (USAbrand)

Linear guide: ABBA (Taiwanbrand) or CPC or Shangying

Cylinder: SMC

Air source treatment elements or electromagnetic valve: SMC

Main technical data:

Armature O.D: Ф20-55mm

Length of lamination: Max60mm

Shaft length: 32~250mm

Shaft O.D: Ф6~Ф20mm

Slot number: 8-24 slots

Commutator O.D: Ф16~Ф50mm

Length of wedge: 15-60mm

Speed regulation range: 0~60Hz

Wedge shape: flat, U or R shape

Thickness of wedge:0.2 mm~2.0 mm

Efficiency: 0.5sec - 0.8sec/per slot, loadingàclampàfeedingàunloading (total 8~10sec/cycle for 12 slots armature)

Air source: air pressure: 4~6kg/cm2

Machine power: 1.0KW

Tooling/fixture: fast changing integrity forming wheel structure

Voltage: AC220V±10%, 50/60Hz

Weight: about400Kg

Dimension:910 mmx880 mmx1300mm3

Features:

Continue operation for 3 shifts, automatically loading and unloading armatures

Could store production parameter for 100nos armatures

Display production data, including shift output, consuming time, etc. During machine running, the machine will alarm once anything abnormal occurs

Three operation modes could be switched: JOG, automatic and stepping

Easy to adjust
