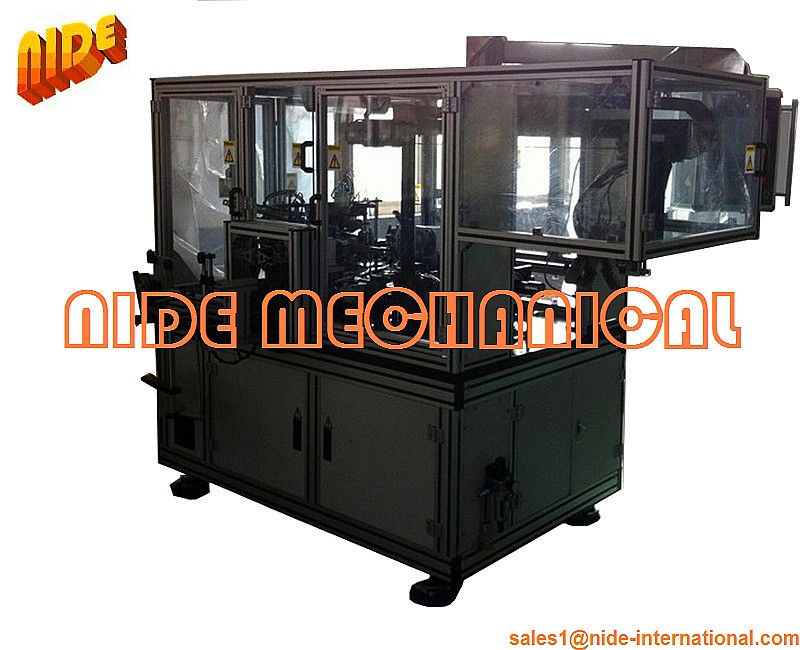

ND-LAWD-5BS4C-104MS armature winding and fusing combined machine

Specifications

Hook type commutator, Double fliers winding, High precision DC inverter single spot welding, Line production

Main configurations

PLC: OMRON

Interface module: OMRON

Conversion module: OMRON

Winding indexing servo motor 750W×1 axis: OMRON

Winding fliers servo motor 1500W×2 axes: OMRON

Welding indexing servo motor 750W×1 axis: OMRON

5C mechanical arm servo motor 750×1: OMRON

Display:10.4”WENVIEW

DC inverter welding power IS120B: MIYAJI

Inverter transformer TDC-5543(40KW): ROMA

Industrial water chiller ICA-1: KANSA

Air switch: MITSUBISHI

Indicator and button: SCHNEIDER

Relay: OMRON

Sliding bearing: MISUMI

Linear bearing: MISUMI

Linear transmission slideway: ABBA

Winding flier: Die-casting aluminum alloy, biaxial dynamic balance calibration

Winding tools: Cr12MoV quenching HRC62

Tensioner 10YN: MITSUBISHI electric magnetic powder brake

Welding indexing chuck: SMC

Pneumatic treatment component: SMC

Electromagnetic valve: SMC

Cylinder: AIRTAC/SMC

Buffer: AIRTAC/CKD/SMC

Main technical parameters

Wire OD: Φ0.2~Φ1.2mm

Shaft length: 50~220mm

Armature OD: Φ20~Φ60mm(Special design machine—Max armature OD82mm)

Armature stack thickness: 20~60mm

Shaft OD: Φ3~Φ16mm

Armature slot Nos.: odd/even number slots

Commutator hook Nos.: 4 hooks ≤even number hooks ≤36 hooks

Commutator OD: Φ12~Φ42mm

Flier winding speed: 0~3000 rpm

Winding indexing speed: 0~3000rpm

Welding indexing speed: 0~3000rpm

Welding power control way: closed loop feedback, high precision inverter

Max output:7000A

Parameter setting: Display setting and power parameter setting

Pressure control way: spring and cylinder in combination

Cooling method: water chiller (input terminal of the water chiller AC 220V 50/60Hz)

Efficiency: 25secs/piece/machine (three machines in line 10sec/piece)

Operation process: stepping, single automatic, in-line fully automatic

Air pressure: 4~6 kg/cm²

Machine power: 45KW

Power: AC three-phase 380±10%, 50/60 Hz
Weight: about1,800kg(exclude weight of water chiller)

Size: 1,800(L) ×1,800
