Especially suitable for coils winding in the stator of high slot filling rate but small slot notch;

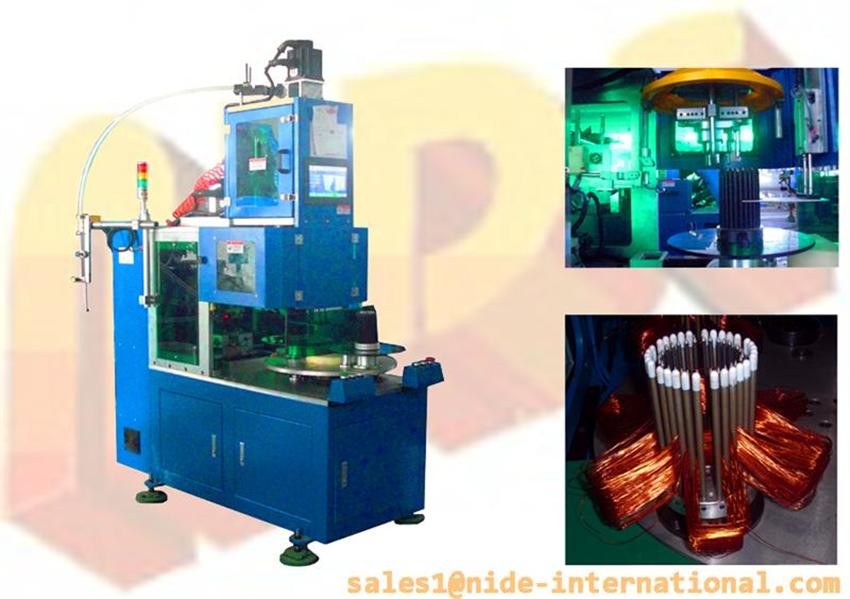

Single-head and double-station automatic winding machine; It automatic put the coil into transfer former orderly. Winding mode such as automatic skip, automatic cutting and automatic indexing can be finished at a time successively; Parameter could be set in human-machine interface, winding tension is adjustable; Obtain continuous/discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding, 1. Max winding speed: 3000rpm 2. Wire diameter: 0.2-1.2mm 3. Cycle time on or under 0.5s/turn (speed 1500-2000rpm, on or under 0.5s/turn; Speed 3000rpm, on or under 0.2s/turn) 4. Flier track: OD200mm 5. Transfer Nos. 2-6 sections 6. Power: 380V, 50Hz 7. Air pressure: 0.5MPa 8. Weight: 1100kgs 9. Dimensions: 1800x1100x2200mm
