| Specification and technical data: | ||||||

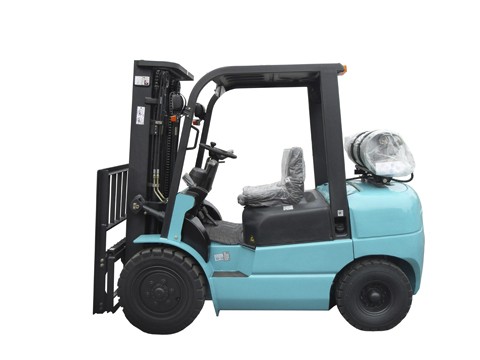

| General | Model | CPYD15 | ||||
| Rated capacity | kg | 1500 | ||||
| Load center | mm | 500 | ||||
| Dimension | Lift height | mm | 3000 | |||
| Overall dimension | Length to fork face | mm | 2235 | |||
| Overall width | mm | 1080 | ||||
| Mast lowered height | mm | 1995 | ||||
| Overhead guard height | mm | 2075 | ||||
| Turning radius | mm | 1960 | ||||
| Performance | Travel speed (full load/no load) | Hydraulic | km/h | 14.5/13.5 | ||
| Lift speed (no load/full load) | mm/sec | 510/450 | ||||
| Max grade ability | % | 20 | ||||
| Engine | Model | NISSAN K21;BAIYANG 491 etc. | ||||
