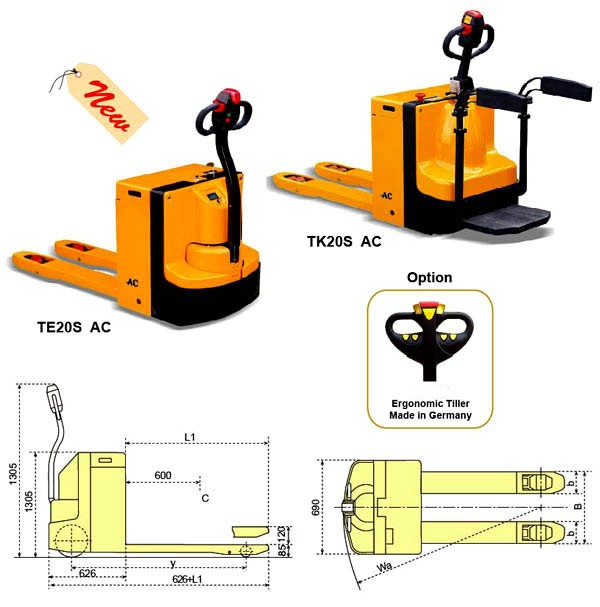

| Powered Pallet Truck TE@AC/TK@AC series |
| AC Technology |
| ▲ Maneuver loads up ramps and dockboards effortlessly. |
| ▲ Compact design combines with new technology, making this pallet truck ideal for narrow, cramped aisles. shortest head length in the market permits the best possible maneuverability. |
| ▲ Smooth stepless speed control with European technology. |
| ▲ Power unit with European technology. |
| ▲ Powerfull traction battery. |
| ▲ Powerful maintenance free AC drive motor. |
| ▲ Drive unit with electromagnetic brake. |
| ▲ Conforms to EN1726 and EN1175-1. |
Specification and technical data:
| Model | TK20L AC | |
| Type | with platform | |
| Capacity | (kg) | 2000 |
| Load Center | C (mm) | 600 |
| Max. Fork Height | H (mm) | 205 |
| Min. Fork Height | h (mm) | 85 |
| Fork Length | L1 (mm) | 1150 |
| Individual Fork Width | b (mm) | 160 |
| Wheel Base | y (mm) | 1406 |
| Turning Radius | Wa (mm) | 1946 |
| Traveling Speed With/Without Load | (Km/h) | 3.6/5.4 |
| Lifting Speed With/Without Load | (mm/s) | 22/32 |
| Lowering Speed With/Without Load | (mm/s) | 50/55 |
| Drive Wheel | 1200W, Ø250mm (AC) | |
| Power Unit (lifting motor) | (W/V) | 800/24 |
| Traction Battery | 24V/210Ah, 185kg | |
| Battery Charger | 25A/24V | |
| Overall Dimension (L×W×H) | (mm) | 2125×690×1305 |
| Fork Overall Width | B (mm) | 680 |
| Net Weight | (kg) | 343 |
| Tiller | O | |
| O = Option Note: Specification and materials are subject to change without notice. | ||
