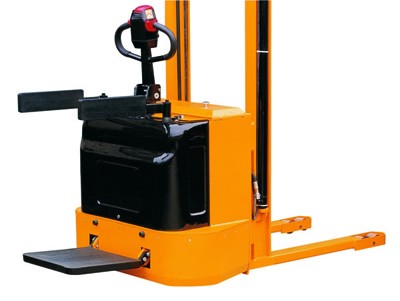

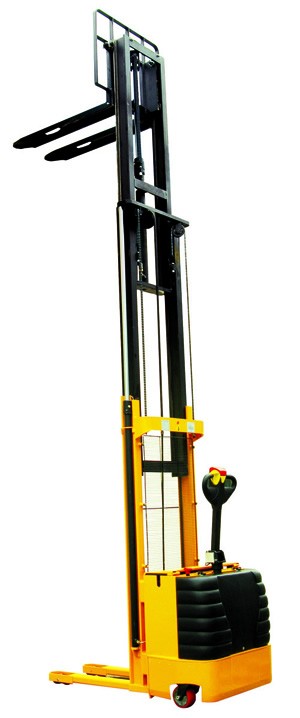

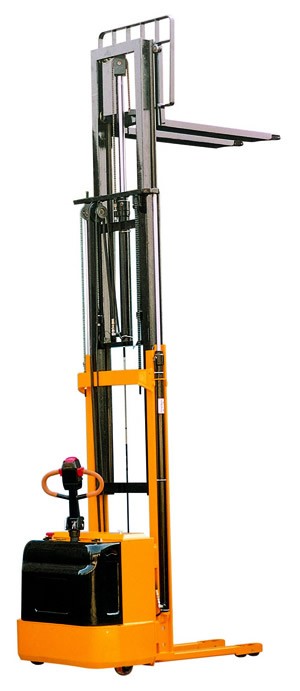

Full Electric Stacker FK/BK series
▲ Heavy duty design with top quality mast construction.
▲ Powerful drive wheel and power unit made in Europe.
▲ Top quality electronic control system from Curtis.
▲ Conforms to EN1757-1:2001, EN 1726.
Specification and technical data:
| Model | FK1545 | |
| Type | Standard | |
| Capacity | (kg) | 1500 |
| Load Center (C) | (mm) | 600 |
| Max.Fork Height (h3) | (mm) | 4500 |
| Lowered Fork hitht (h) | (mm) | 90 |
| Full Free Lifting leight (h4) | (mm) | 1550 |
| Fork length (I) | (mm) | 1150 |
| Fork Overall Width (M) | (mm) | 560 |
| Fork Individual Width (N) | (mm) | 160 |
| Traction Battery | (Ah/V) | 240/24 |
| Battery Charger | (A/V) | 30/24 |
| Weight of battery | (kg) | 230 |
| Overall Dimension | (mm) | 2013x940x2175 |
| Net Weight (without battery) | (kg) | 1010 |
| Note: Specification and materials are subject to change without notice. | ||
