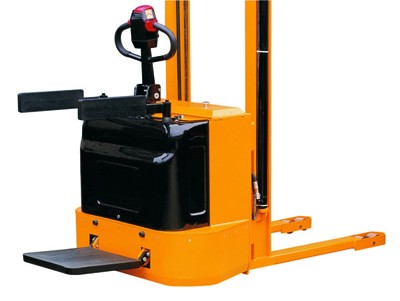

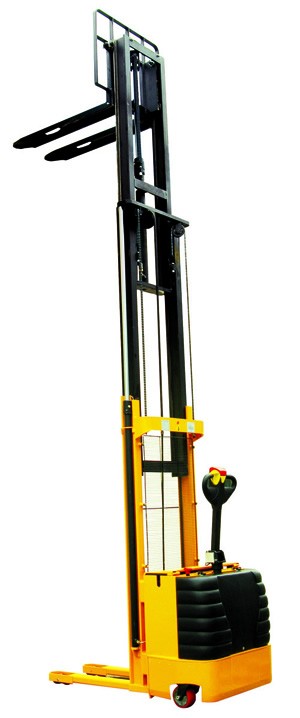

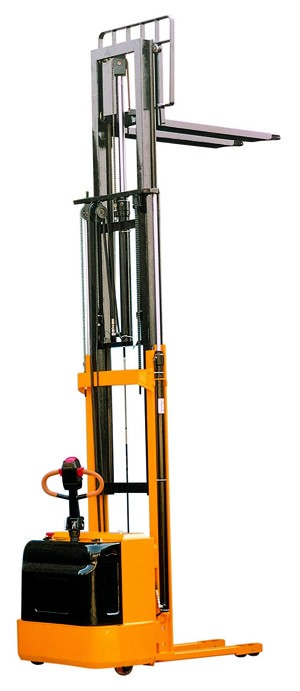

Full Electric Stacker FK/BK series |
▲ Heavy duty design with top quality mast construction. |
▲ Powerful drive wheel and power unit made in Europe. |
▲ Top quality electronic control system from Curtis. |
▲ Conforms to EN1757-1:2001, EN 1726. |
Specification and technical data:
Model | BK1545 | |
Type | Platform | |
Capacity | (kg) | 1500 |
Load Center (C) | (mm) | 600 |
Max.Fork Height (h3) | (mm) | 4500 |
Lowered Fork hitht (h) | (mm) | 90 |
Full Free Lifting leight (h4) | (mm) | 1550 |
Fork length (I) | (mm) | 1150 |
Fork Overall Width (M) | (mm) | 560 |
Fork Individual Width (N) | (mm) | 160 |
Traction Battery | (Ah/V) | 240/24 |
Battery Charger | (A/V) | 30/24 |
Weight of battery | (kg) | 230 |
Overall Dimension | (mm) | 2507x1080x2175 |
Net Weight (without battery) | (kg) | 1035 |
Note: Specification and materials are subject to change without notice. |
