Semi-Electric Stacker MS series
▲ Heavy duty design and top quality mast construction.
▲ Safety guard on load roller and steering wheel.
▲ Light and easy manual steering system.
▲ Conforms to EN1757-1:2001,EN1727.

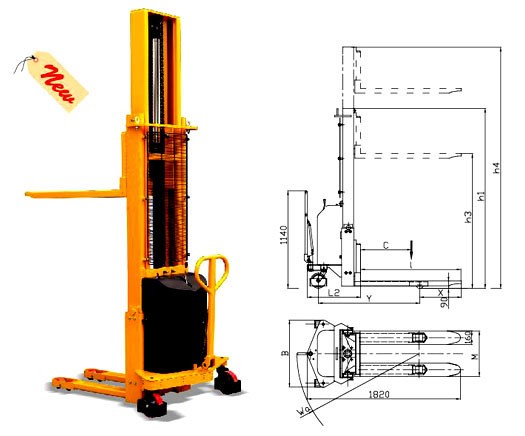

Specification and technical data:
| Model | MS1529 | |
| Capacity | (kg) | 1500 |
| Max.Fork Height | h3 (mm) | 2900 |
| Min.Fork Height | (mm) | 90 |
| Load Center | C (mm) | 400 |
| Wheels Base | Y (mm) | 1132 |
| Load Distance | X (mm) | 450 |
| Truck Length incl. Fork Face | L2 (mm) | 670 |
| Lifting Speed (with/without load) | (mm/s) | 64/96 |
| Lowering Speed (with/without load) | (mm/s) | 106/74 |
| Fork Length | l (mm) | 1150 |
| Fork Overall Width | M (mm) | 540 |
| Single Fork Width | (mm) | 160 |
| Front Wheel | (mm) | Ø82×70 |
| Reae Wheel | (mm) | Ø180×50 |
| Turning Radius | Wa (mm) | 1500 |
| Power Pack | (KW/V) | 1.6/12 |
| Battery | (Ah/V) | 180×2/12 |
| Charger | (A/V) | 12A/12V |
| Overall Length | L (mm) | 1820 |
| Overall Width | B (mm) | 800 |
| Overall Height | h1 (mm) | 2025 |
| Net Weight (with battery) | (kg) | 580 |
