Semi-Electric Stacker MS series
▲ Heavy duty design and top quality mast construction.
▲ Safety guard on load roller and steering wheel.
▲ Light and easy manual steering system.
▲ Stepless speed of lifting/lowering.
▲ Conforms to EN1757-1:2001,EN1727.

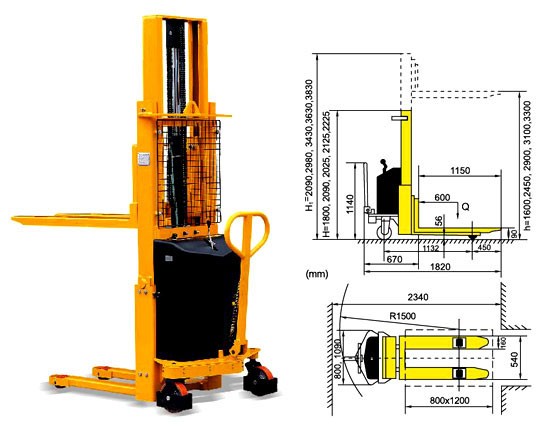

Specification and technical data:
Model | MS1033 | |
Capacity | (kg) | 1000 |
Lifting Height | (mm) | 3300 |
Lifting Speed (with/without load) | (mm/s) | 95/127 |
Power Pack | (W) | 1500 |
Battery (Service free) | (Ah/V) | 120/12 |
Battery Charger | (A/V) | 12/12 |
Steering Wheel | (mm) | Ø180×50 |
Load Roller | (mm) | Ø82×70 |
Overall Length | (mm) | 1820 |
Overall Width | (mm) | 1000 |
Overall Height | (mm) | 2225 |
Net Weight (with battery) | (kg) | 610 |
