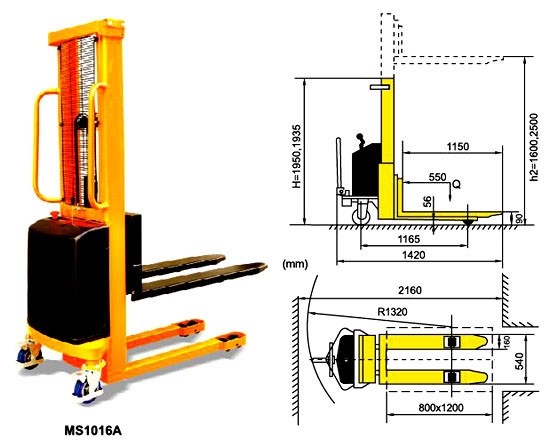

Semi-Electric Stacker MS@A series
▲ Compact design and reliable mast constryction.
▲ Safety guard on load roller and steering wheel.
▲ Light and easy manual steering system.
▲ Conforms to EN1757-1:2001,EN1727.
Specification and technical data:
| Model | MS1016A | |
| Capacity | (kg) | 1000 |
| Max.Fork Height | (mm) | 1600 |
| Min.Fork Height | (mm) | 90 |
| Overall Length | (mm) | 1420 |
| Overall Width | (mm) | 780 |
| Overall Height | (mm) | 1950 |
| Fork Length | (mm) | 1150 |
| Fork Overall Width | (mm) | 540 |
| Single Fork Width | (mm) | 160 |
| Front Wheel | (mm) | Nylon Ø78×80 |
| Rear Roller | (mm) | PU Ø150×38 |
| The Distance between The Two Rear Roller | (mm) | 595 |
| Battery | (Ah/V) | 100/12 |
| Weight of Battery | (kg) | 29 |
| Motors | (KW/V) | 1.5/12 |
| Lifting Speed (with/without load) | (mm/s) | 62/118 |
| Lowering Speed (with/without load) | (mm/s) | 106/84 |
| Net Weight (with battery) | (kg) | 245 |
| Steering Handle | O | |
| O = Option |
