Semi-Electric Stacker MS series
▲ Heavy duty design and top quality mast construction.
▲ Safety guard on load roller and steering wheel.
▲ Light and easy manual steering system.
▲ Stepless speed of lifting/lowering.
▲ Conforms to EN1757-1:2001,EN1727.

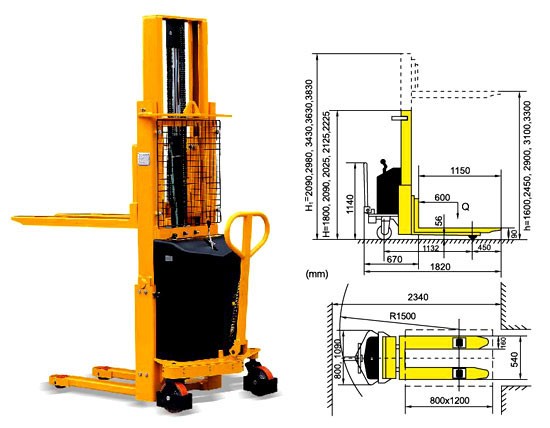

Specification and technical data:
| Model | MS1016 | |
| Capacity | (kg) | 1000 |
| Lifting Height | (mm) | 1600 |
| Lifting Speed (with/without load) | (mm/s) | 95/127 |
| Power Pack | (W) | 1500 |
| Battery (Service free) | (Ah/V) | 120/12 |
| Battery Charger | (A/V) | 12/12 |
| Steering Wheel | (mm) | Ø180×50 |
| Load Roller | (mm) | Ø82×70 |
| Overall Length | (mm) | 1820 |
| Overall Width | (mm) | 800 |
| Overall Height | (mm) | 2090 |
| Net Weight (with battery) | (kg) | 480 |
