Full Electric Stacker FY / FY@AC series
With DC or AC technology
▲ Double cylinder are mounted on both sides for wide view while loading and transporting.
▲ High-comfort tiller grip reduces fatigue, improving productivity.
▲ Heavy-duty design with top quality mast construction.
▲ Powerful drive and power unit made in Europe.
▲ Top quality electronic control system made in Europe.
▲ Conforms to EN1757-1:2001, EN 1726.
Specification and technical data:
| Model | FY1529 | |
| FY1529AC | ||
| Capacity | (kg) | 1500 |
| Max. Fork Height | (mm) | 2900 |
| Lowered Fork Height | (mm) | 90 |
| Load Centre | (mm) | 600 |
| Fork Length | (mm) | 1150 |
| Fork Overall Width | M(mm) | 540 |
| Fork Individual Width | N(mm) | 160 |
| Motors Traveling | (KW/V) | 1.2/24 |
| Motors Lifting | (KW/V) | 2.2/24 |
| Travelling Speed With/Without Load | (km/h) | 4.0/5.5 |
| Lifting Speed With/Without Load | (km/h) | 95/122 |
| Lowering Speed With/Without Load | (km/h) | 110/60 |
| Front Wheel | (mm) | Ø78×70 |
| Rear Wheel | (mm) | Ø150×75 |
| Driver Wheel | (mm) | Ø250×80 |
| Battery (service free) | (Ah/V) | 200/24 |
| Battery Charger | (A/V) | 20/24 |
| Option Traction Battery | (Ah/V) | 240/24 |
| Turning Radius | (mm) | 1560 |

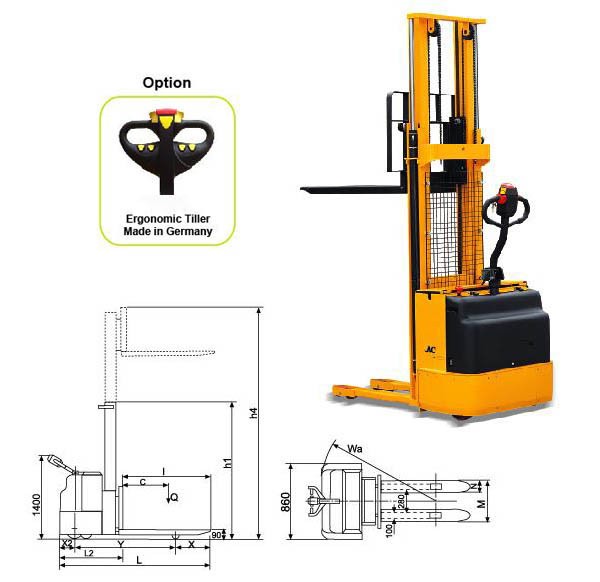

| Overall Dimension | X(mm) | 559 |
| X2(mm) | 195 | |
| Y(mm) | 1319 | |
| L2(mm) | 820 | |
| L(mm) | 1970 | |
| Wa(mm) | 575 | |
| h1(mm) | 2025 | |
| h4(mm) | 3544 | |
| Net Weight | (kg) | 758 |
